SketchUp is a free 3D modeler.
Your SketchUp file must be one continuous, solid object. The printer must be able to clearly distinguish between the inside and outside of the object it is printing. There cannot be holes or gaps in the model, because the 3D printer will not be able to tell what is inside the object and what is outside-the exterior of the building must be sealed. There are tools that can help identify an close holes and gaps, but the majority of these areas should be found and closed within the original CAD model for best results. In order to print your sketchup models, you'll have to convert your files to stl .
Tools
Selection Tool
spaceUse this tool when you want to select part of your project - a line, a wall, a box, etc. If you select a line or wall with this tool then you can hit delete on your keyboard to erase your selection.
This tool is not for moving things around! Use the move/copy tool if you need to move things around.
3D
Use this tool to create 3D text. Click on the tool, fill in the options in the box that pops up, and then click on your project where you want to place the text.
Arc
AYou use this tool to draw arcs (curves). Click where you want to start the arc, then click where you want to end the arc. Move your mouse around to adjust to curve, and when you have it the way you want it, click again to complete the arc.
Axes
Use this tool to reposition the location of your axes.
Circle
CYou use the circle tool to draw flat circles!
Component Maker
Dimensional>
The dimension tool can be used to measure the length and width of a shape.
Eraser
EThe eraser tool will remove lines from your project. Click on lines to remove them from your shapes.
Note that removing lines will sometimes remove walls! If you remove a bounding line for a wall, the wall will disappear.
Follow Me
This tool is useful for making spheres, donuts and other irregular tunnel-shapes. Draw a curve, and then draw the shape you want to follow your curve. With the follow me tool, click and drag your shape along the curve.
Freehand
Use this tool to draw irregular shapes for your project. Also handy when used with the follow me tool.
Line
LUse this tool to draw a straight line anywhere in your project. Very helpful for dividing things like walls, or putting things into your project like doors.
Look Around
Use this tool to "look around" in your project. Clicking and dragging with this tool create the equivalent effect of standing in place and looking up, down, left, right, etc.
Move/Copy
MUse this tool to move things around or to copy things.
Offset
FUse this tool to make duplicates of flat surfaces you have already created, just in a different scale (this is very helpful when creating walls).
To use this tool, click and drag on the surface of your shapes to create a similar shape on the surface of your existing object.
Orbit
OUse this tool to adjust the view of your project by rotating your position. Click and drag on your project to use this tool.
Paint Bucket
BUse this tool to choose colors and to add color/texture to your walls and shapes. Click on this tool to bring up the colors palette. Choose a color, and then click on your objects to add the color or texture to your objects.
Pan
HThis tool will change your view of your world by moving you to the up/down/left/right, according to the direction you drag. Unlike the orbit tool, the pan tool will not rotate your view. Click and drag across your project to use this tool.
Polygon

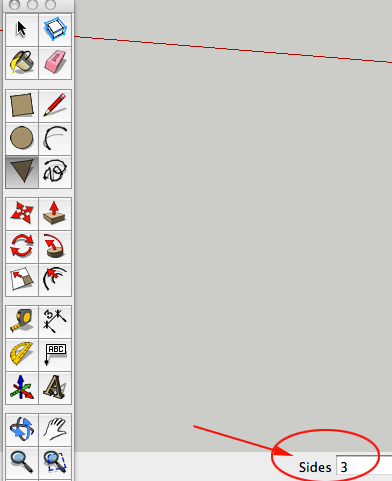

Use this tool to draw polygons other than squares and rectangles (such as octagons, triangles, etc).
Position Camera
Use this tool to reposition your camera. Click anywhere on your project, and the camera (your point of view) will move to that position.
Previous View
Use this tool to go back to your previous view. For example, if you accidentally change your view, click this tool to go back to the view you just had.
Protractor

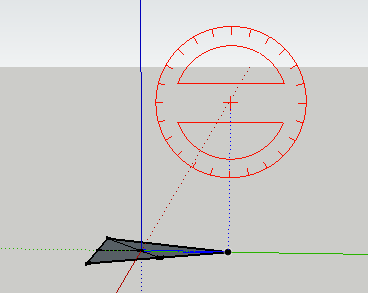

This tool measures angles - use it to plan the creation of angles, or to measure angles you've already created.
Push/Pull
Use this tool to give your shapes volume (ie, once you have a shape like a rectangle, use this tool to pull up on it to make a cube).
Rectangle
RUse this tool to draw a flat rectangle.
Rotate
QThe rotate tool rotates objects, walls, and components. It works best on FLAT surfaces!
To use the rotate tool, click on a (preferably) flat surface to select the object you want to rotate. Move your mouse away from where you just clicked and click again. To start the rotation, move your mouse around. When your object is properly rotated, click to stop the rotation.
Scale
SUse this tool to change the size of one of your objects. Click on the object you want to scale, and drag on the corners to change its size. Hold down your shift key to keep it in proportion.
Section
Tape measure
TUse this tool to measure how long something is in sketchup. Click at your starting point, and click again at your ending point. The measurement will show up in the bottom right hand corner of the window.
Text
This tool creates little signs that are attached to your buildings and objects. Use it to display information about your project.
With the tool selected, click on an object and then type the text you want to be displayed.
Walk
Using this tool can create the perspective of walking. Click and hold down on your mouse to start using this tool. Keep your mouse held down and move your cursor left and right - it should look like you are turning. Move your mouse up and down to move forwards and backwards.
Zoom Extents
Shift+ZUse this tool to display your entire project. If you are ever zoomed in too far or need to reset your view, click on this tool to reposition your entire project.
Zoom Window
Another type of zooming tool.
Zoom
ZThis tool zooms your view in and out. Click it once to zoom in a little bit, or click and drag over an area you want to zoom in on.
Note that you can also zoom in (and out!) by using the scroll wheel on your mouse of you have one.
Basics
- Open Google SketchUp.
- Go to preferences and select Templates
- Select Architectural Design
-
If the large tool set is not open, select View>Tool Palettes>Large Tool Set to open all the available tools
Conic Sections
You can create an ellipse, hyperbola and parabola from the circle tool.
A SketchUp circle is actually a segmented polygon with a default number of sides set to 24. You can smooth out your circles by typing a higher number. That number will appear in the box in the lower right corner. Just be aware that the higher the number, the longer the processing time.
Ellipses
- Open a new document
- Select the eraser and click on the figure to delete her.

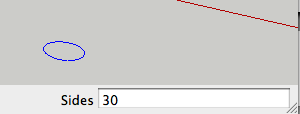

- Select the Circle tool and change the segments if you want to

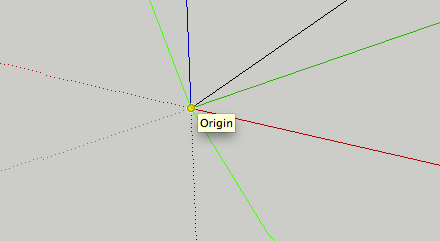

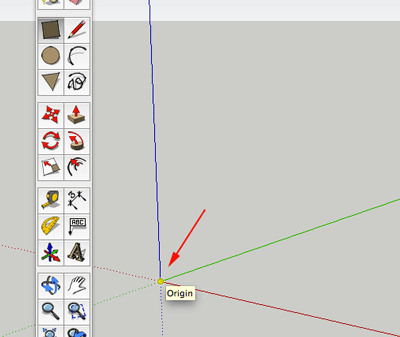

- Draw a circle at the origin by clicking where the three axes meet and dragging outward. The circle can be of any size as long as it lies on the ground plane.

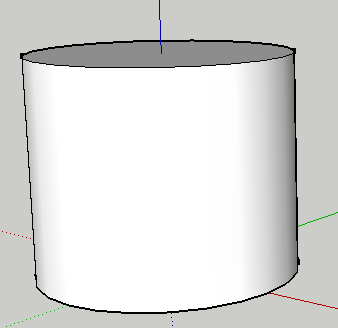

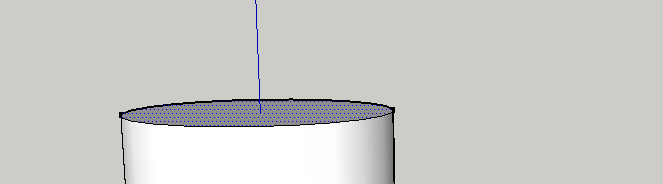

- Push the circle up to create a cylinder.
- You need to make a cone. Press the space bar to change to the select tool and click on the top of the cylinder.
- Select the scale tool. Shrink the top of the cylinder about its center, by placing the cursor on one of the corner handles and continuing to press Ctrl key (PC) or Option key (Mac) while you drag towards the center.

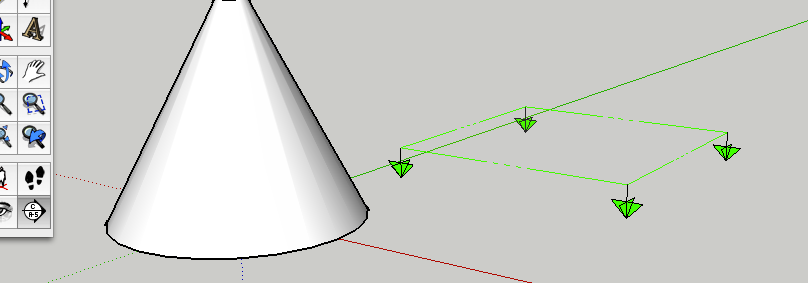

- Now you need to slice through the cone. Activate the Section Plane tool.
- Keep the cursor in blank space, so that the section plane preview (which is green with four downward-pointing arrows) is flat on the ground
- Press and hold the Shift key, which keeps the section plane flat. Then move your cursor somewhere on the cone. With Shift still pressed, click to create the section. Now the top part of the cone is sliced off, and you can see inside.

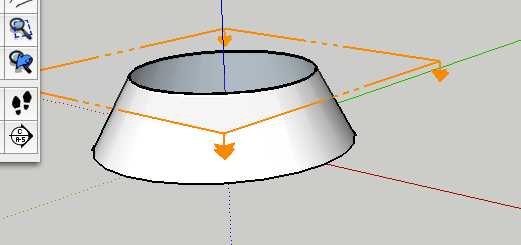

- To change the circle into an ellipse, the section plane needs to be tilted. First do two things: activate Select and click the section plane (it should turn blue when selected), and orbit so that you're facing the side of the cone, looking straight along the green axis. The red axis should go off to the right and left.
The Golden Ratio
The Golden Ratio, Golden Mean, or Golden Section, is a number often encountered when taking the ratios of distances in simple geometric figures such as the pentagon, pentagram, decagon and dodecahedron. It is sometimes referred to as φ, or Phi. The decimal representation of phi is 1.6180339887499... .Given a rectangle having sides in the ratio 1:x, φ is defined as the unique number x such that partitioning the original rectangle into a square and new rectangle results in a new rectangle which also has sides in the ratio 1:x. Such a rectangle is called a golden rectangle, and successive points dividing a golden rectangle into squares lie on a logarithmic spiral, giving a figure known as a whirling square.
In other words, if you have a rectangle whose sides are related by phi you can create a new rectangle by 'swinging' the long side around one of its ends to create a new long side. The new rectangle is also Golden. If you start with a square (1 x 1) and start swinging sides to make rectangles, the result will be Golden rectangles:
1 x 1
2 x 1
3 x 2
5 x 3
8 x 5
13 x 8
21 x 13
34 x 21
and so on, with, again, each addition coming ever closer to multiplying by phi.
Fibonacci Series
Making a Golden Rectangle
The Fibonacci Series and the Golden Rectangle

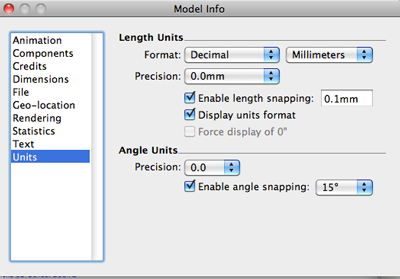

- Select Window>Model Info

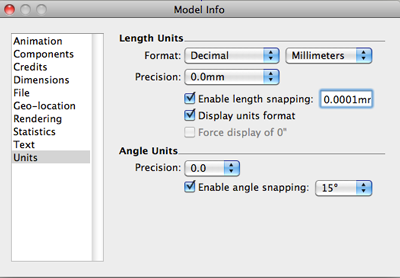

- Change the format to Decimal and Millimeters:

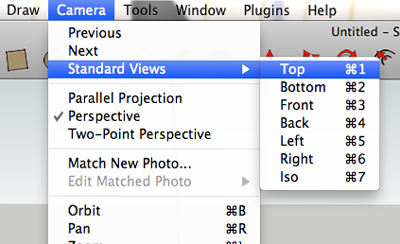

- Change to Top View
-

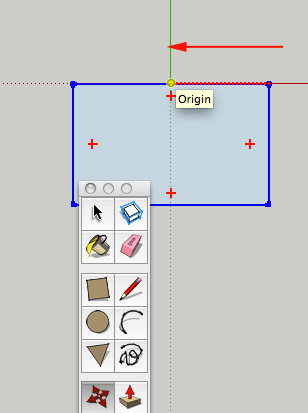

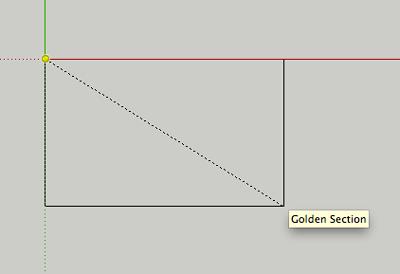

Select the Rectangle Tool. Drag the rectangle tool from the origin out until you see the diagonal line and the words Golden Section pop up
- To find out the dimensions, CTRL+click on a segment and choose entity info
- Do the same for the other segment:
- Use a calculator to determine the ratio.

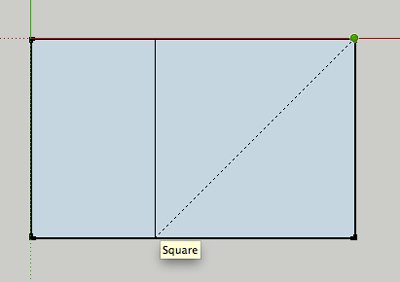

1170.6/1894.1=.61802439153 - Drag the rectangle tool to draw a square within the rectangle:
-

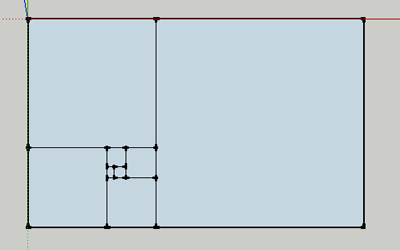

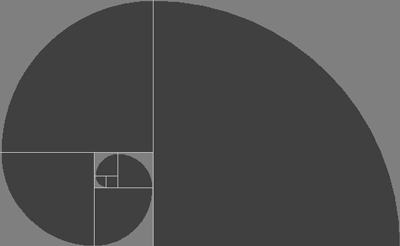

If you keep dividing, you'll end up with a spiral
The Fibonacci Series and the Golden Rectangle

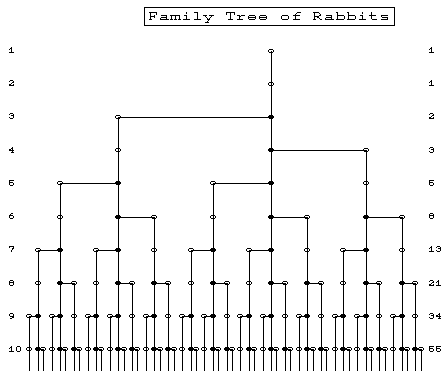

Fibonacci (short for Filius Bonacci -son of Bonacci-, Leonardo da Pisa) (1175-1250) was a European mathematician during the middle ages. Italian and born in Pisa, Italy, Fibonacci grew up with a North African education under the Moors, travelled extensively and learned the Hindu-Arabic system of arithmetics. He was one of the first people to introduce the Hindu-Arabic number system (the positional system we use today) to Europe. One of the problems in his book Liber Abbaci, was the problem about rabbits in a field which introduced the Fibonacci series: 1, 1, 2, 3, 5, 8, 13, 21, etc. In this series the n-th Fibonacci number is the sum of the (n-1)th and the (n-2)th numbers. It was the French mathematician Edouard Lucas (1842-1891) who gave the name Fibonacci numbers to this series and found many other important applications of them.Suppose a newly-born pair of rabbits, one male, one female, are put in a field. Rabbits are able to mate at the age of one month so that at the end of its second month a female can produce another pair of rabbits. Suppose that the rabbits never die and that the female always produces one new pair (one male, one female) every month from the second month on. The puzzle that Fibonacci posed was...
- At the end of the first month, they mate, but there is still one only 1 pair.
- At the end of the second month the female produces a new pair, so now there are 2 pairs of rabbits in the field.
- At the end of the third month, the original female produces a second pair, making 3 pairs in all in the field.
- At the end of the fourth month, the original female has produced yet another new pair, the female born two months ago produces her first pair also, making 5 pairs.
The golden ratio is obtained by taking the ratio of successive terms in the Fibonacci series:
- 2/1 = 2
- 3/2 = 1.5
- 5/3 = 1.6666...
- 8/5 = 1.6
- 13/8 = 1.625
- 21/13 = 1.61538...
- 34/21 = 1.61904...
if you start with two small squares of size 1 next to each other. On top of both of these draw a square of size 2 (=1+1). You can now draw a new square - touching both a unit square and the latest square of side 2 - so having sides 3 units long; and then another touching both the 2-square and the 3-square (which has sides of 5 units). You can continue adding squares around the picture, each new square having a side which is as long as the sum of the latest two square's sides . This set of rectangles whose sides are two successive Fibonacci numbers in length and which are composed of squares with sides which are Fibonacci numbers, or Fibonacci Rectangles. |
Here is a function using the formula attributed to both Binet and de Moivre:
function fibonacci(theNumber) { var Phi= (1+ Math.sqrt(5))/2; // The Golden section constant return (Math.round((Math.pow(Phi, i)/Math.sqrt(5)))); }
Cubes
Basic Cube
- Open a new document
- Select the eraser and click on the figure to delete her.
- Select the rectangle tool

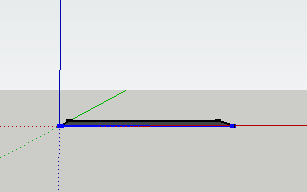

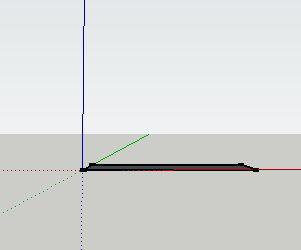

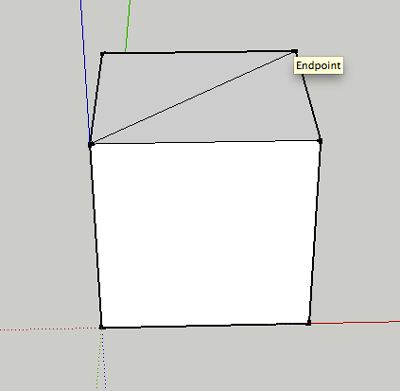

- Start at the origin and pull outward. As long as you see the diagonal, you will have a square:
- Orbit the drawing
- Press Space bar and select the edge:
-

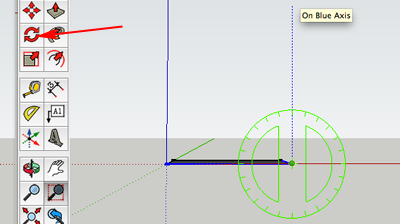

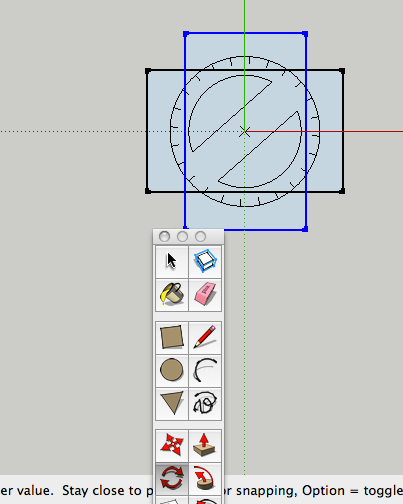

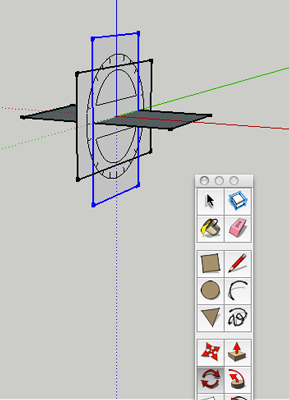

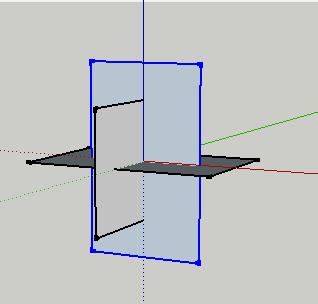

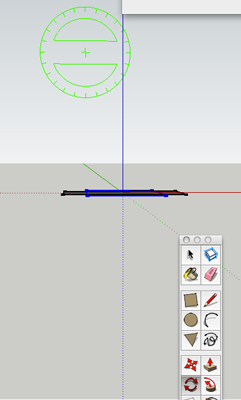

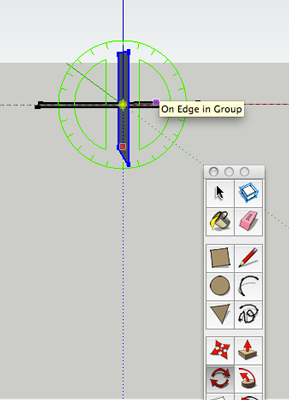

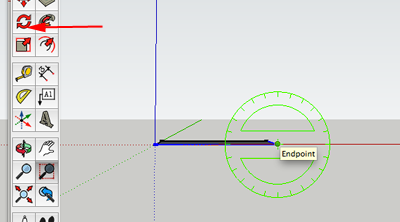

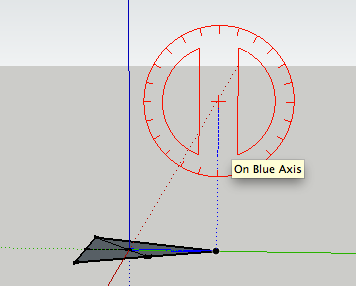

Select the Rotate tool and click on the endpoint-this is where you'll rotate from. The protractor should be green

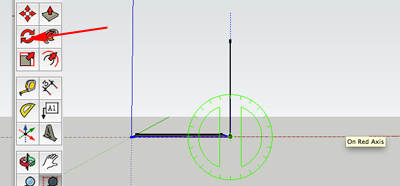

- Click at 90°:

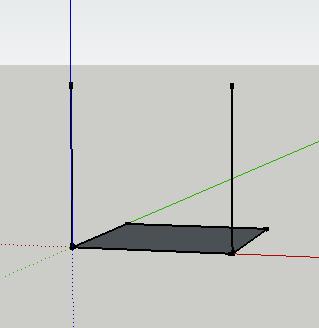

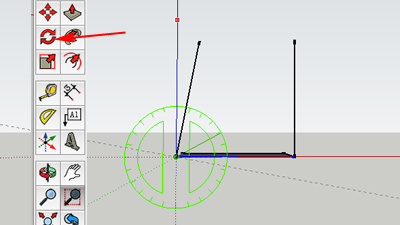

- Press Option to make a copy and drag so that your copied line aligns with the Blue axis. You should see that the angle equals 90° in the box in the lower right hand corner:

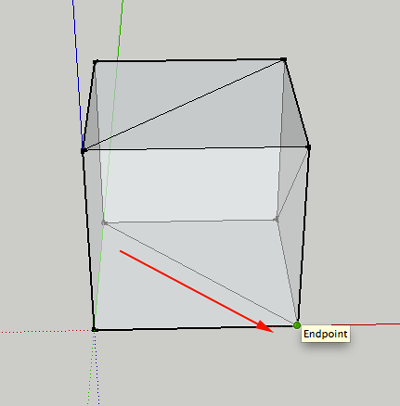

- Repeat the process for the other corner:

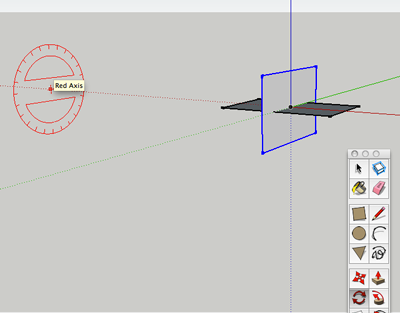

- Select the Orbit tool and move around so that you can see your square as well as your two lines:

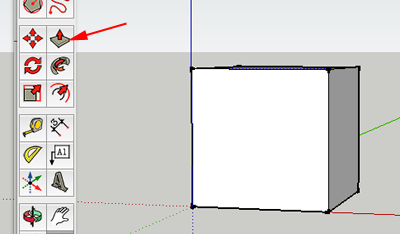

- Select the Push/Pull Tool and pull the square to meet the two lines:
Truncated Cube
- Begin with a cube

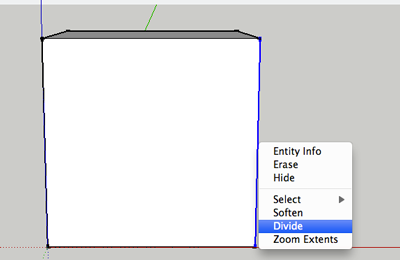

- CTRL+click on the right line and select divide:

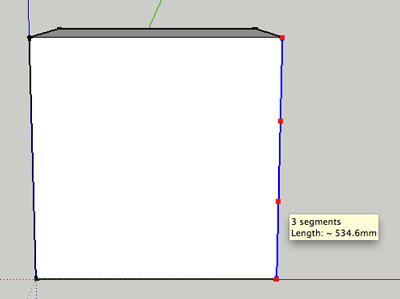

- Move the mouse to make three segments

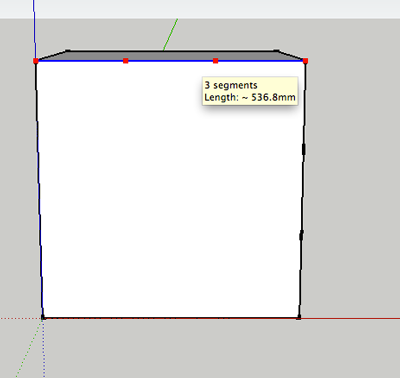

- Divide the top line into three segments

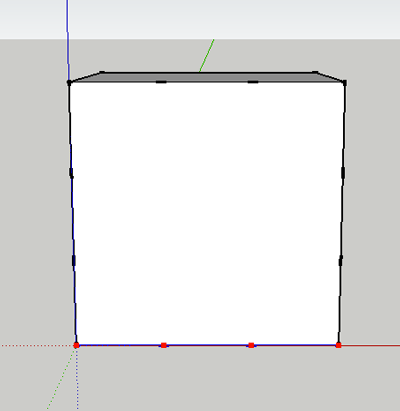

- Divide the bottom line into three
segments
- Divide the last line, then connect the endpoints:

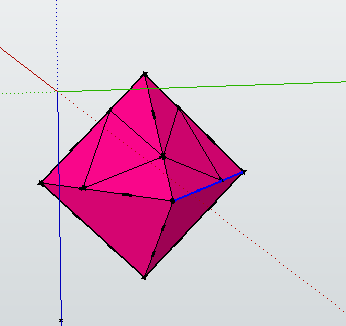

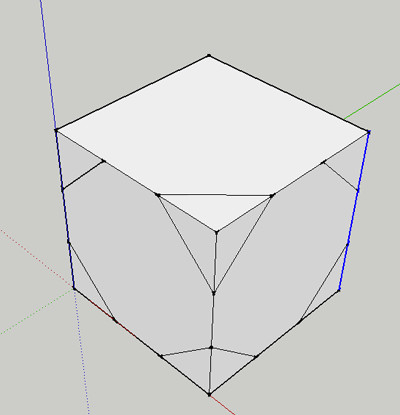

- Continue dividing and connecting:

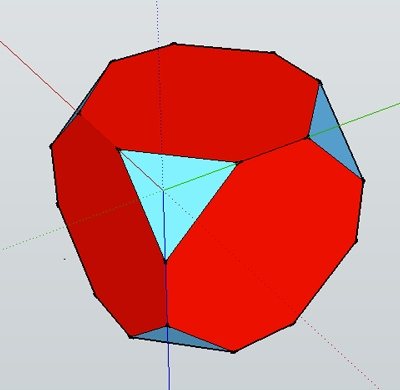

- Delete the corner pyramids and color the faces:
Archimedean Solids
There are 13 Archimedean solids. These solids are sometimes referred to as the semiregular polyhedra.
- Cube
- Truncated Cube
- cuboctahedron
- Truncated Octahedron
- Octahedron

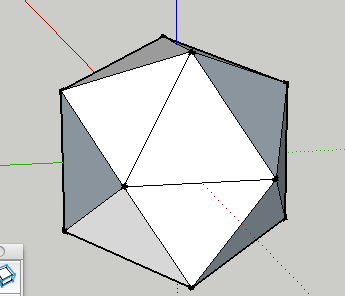

- Icosahedron
- Truncated Icosahedron
- Icosidodecahedron
- Truncated Dodecahedron
- Dodecahedron
- Tetrahedron
- Truncated Tetrahedron
- Octahedron
cuboctahedron
cuboctahedron Approach 1
- Begin with a cube
- Select the line tool

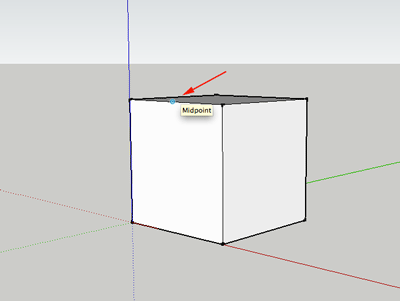

and bisect a plane:

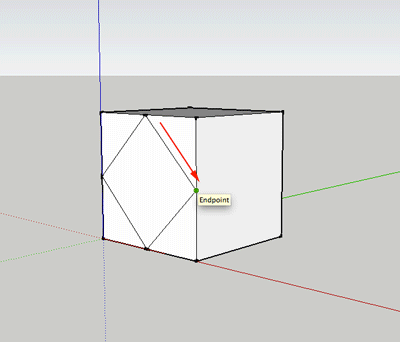

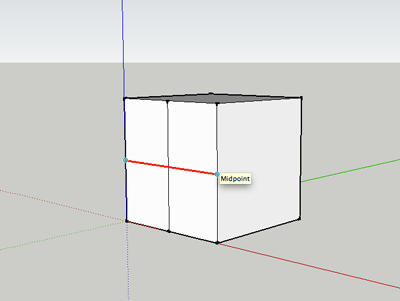

- Connect the midpoints on the face:

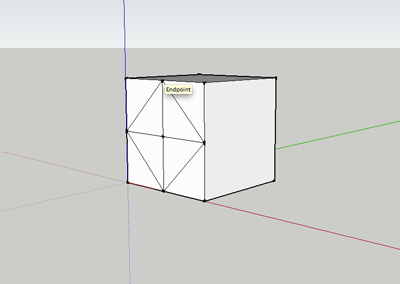

- Select the eraser tool and delete the vertical and horizontal line segments

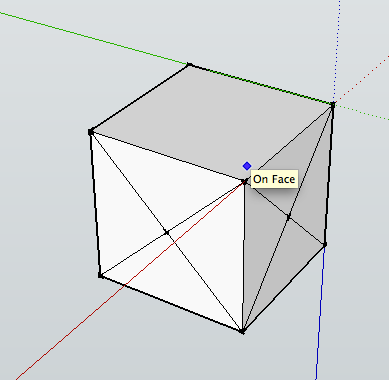

- Connect the midpoints on every face:

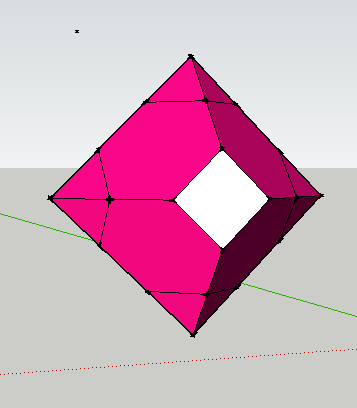

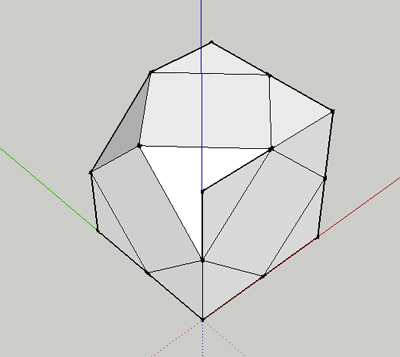

- Delete the corner pyramids

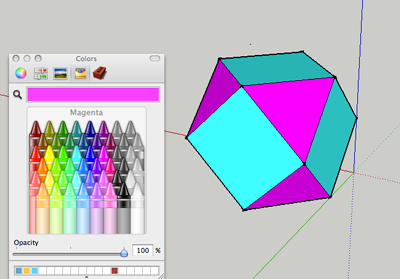

- Color the planes

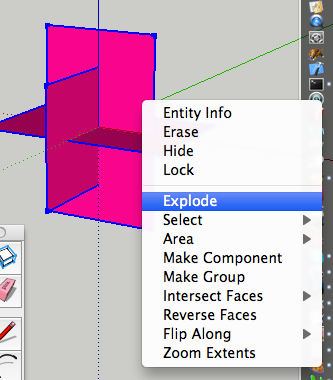

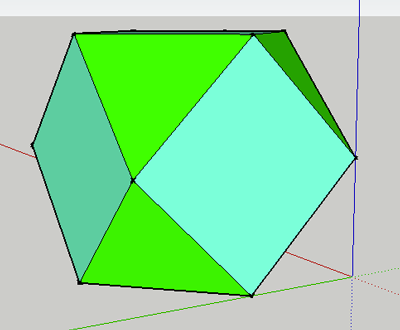

- If you SHIFT+click on a plane with a color selected, all the planes of the same color will fill with the new color:
cuboctahedron Approach 2

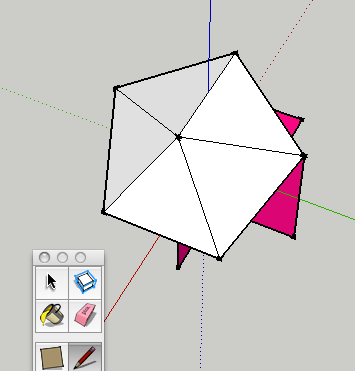

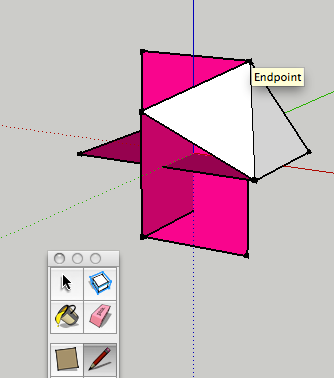

- Start with a Basic Octahedron

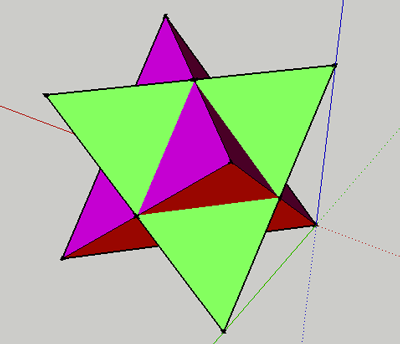

- Start with a Stellated Octahedron
- Begin with a cube

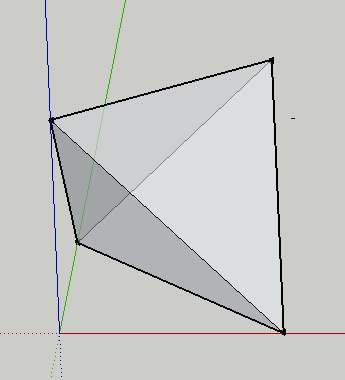

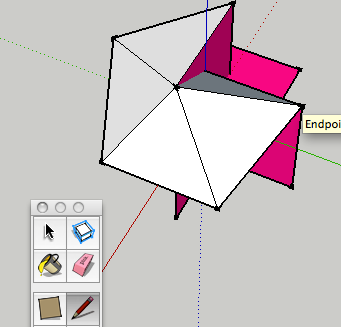

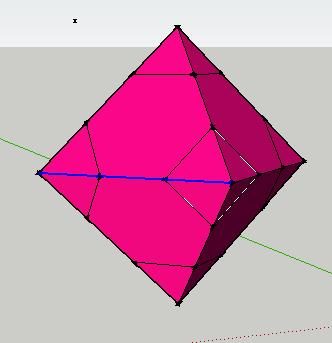

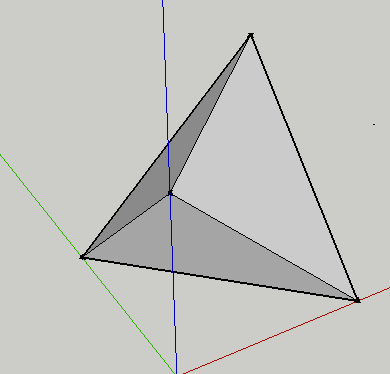

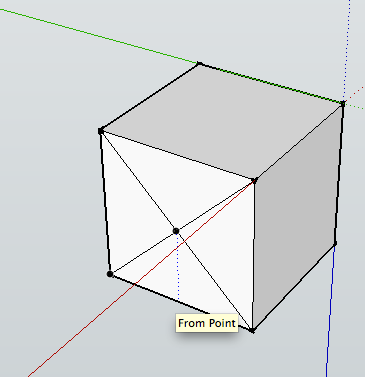

- Use the line tool to connect corner to corner:

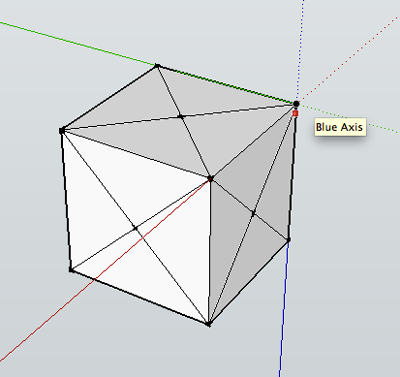

- Connect all corners:

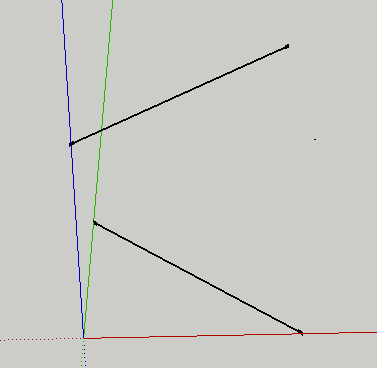

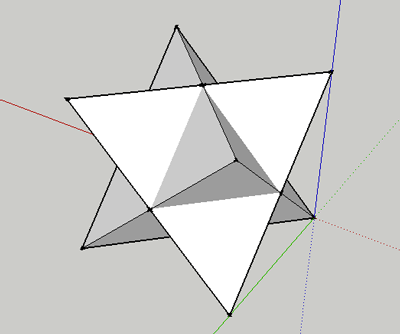

- Delete all the edges of the original cube:
- Begin with a cube
- Color the faces (you should have 8 colors)

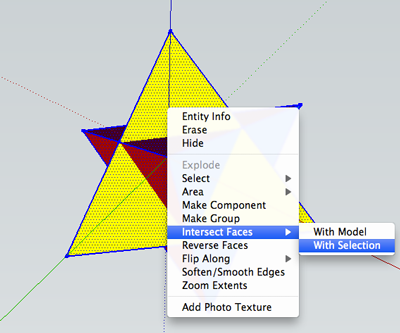

- Select the entire model, press space bar and click on an edge. Select Intersect Faces>with Selection:
- Delete the 8 pyramids:
- Start with a Stellated Octahedron
- Color the Octahedron in one color:

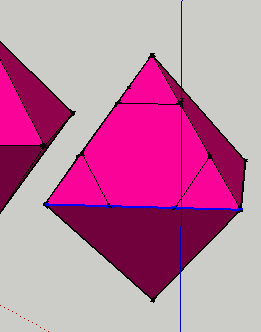

- Connect all the midpoints:
- Delete the pyramids:
Tetrahedron
- Create a basic Cube
- Connect the near left corner to the far right corner of the top face

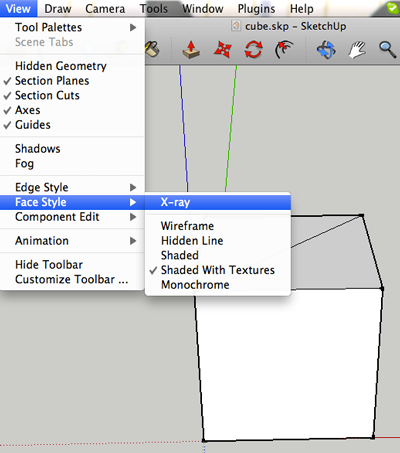

- Enable X-ray view by selecting View>Face Style>X-Ray
- Connect the far left corner to the near right corner of the bottom face
- Delete all the edges of the cube
- Connect the vertices:
- Turn off X-ray
- Select the Polygon tool
And type the number 3. It will show up in the lower right hand corner. Press RETURN
- Change the view to top by selecting Camera>Standard Views>Top

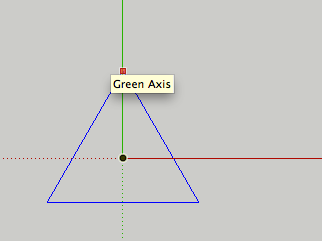

- Draw a triangle so that one of the vertices falls along the green axis. Start at the origin and drag up along the green axis:
- Select the triangle, CTRL+click and choose explode Curve. This process separates the edges from the faces:
- Bisect the triangle
- Bisect the triangle again:
- Orbit the triangle, Select the segment connecting the last two points along the green axis. Choose the Rotate tool. Move the cursor until the protractor is red. Move the protractor to the top of the screen, when it is red, hold down SHIFT and move it to the endpoint. While still holding SHIFT rotate the protractor until the dotted blue line appears
- Press OPTION and rotate the protractor again to rotate the segment along the blue axis:
- Connect the vertical line to the intersecting point:
- Rotate the hypotenuse of this triangle up vertically. Use the protractor, if you need to adjust the angle type 45:
- Delete the hypotenuse and adjacent edge:
- Connect two corners to the top of the rotated line:
- Delete the rotated line and connect the last vertex to the top:
- By connecting the midpoints to the vertices, you end up with more tetrahedrons:
Truncated Tetrahedron
- Start out with a tetrahedron
- CTRL+click on each edge and divide into 3:
- Connect the vertices
- Delete the pyramids
Octahedrons
Basic Octahedron
- Start with a Stellated Octahedron
- Begin with a cube
- Use the line tool to connect corner to corner:
- Connect all corners:
- Delete all the edges of the original cube:
- Begin with a cube
- Color the faces (you should have 8 colors)
- Select the entire model, press space bar and click on an edge. Select Intersect Faces>with Selection:
- Delete the 8 pyramids:
Stellated Octahedron
- Begin with a cube
- Use the line tool to connect corner to corner:
- Connect all corners:
- Delete all the edges of the original cube:
Truncated Octahedron
- Begin with an octahedron
- Press the spacebar and CTRL click on a line. Select Divide
- Divide each line segment into thirds, then use the Line tool to connect all the endpoints
- Divide all the segments and connect all the endpoints the
- Delete the pyramids
- This is known as a truncated octahedron:
Icosahedron
An Icosahedron is comprised of twenty equilateral trianglesStarting with a Stellated Octahedron
- Start with a Stellated Octahedron
- Begin with a cube
- Use the line tool to connect corner to corner:
- Connect all corners:
- Delete all the edges of the original cube:
- Begin with a cube
- Color the faces (you should have 8 colors)
- Select the entire model, press space bar and click on an edge. Select Intersect Faces>with Selection:
- Delete the 8 pyramids:
- Ctrl+click on a line and select Divide:
Divide each segment into thirds. - Using the line tool, divide the face like this:
- Continue dividing all the faces:
- Erase the pyramids and extra edges that are left because of dividing the lines into thirds:
- Using the line tool, connect the midpoints
- Continue connecting midpoints until you have the icosahedron
Starting with a Golden Rectangle
- Start with a Golden Rectangle of any length

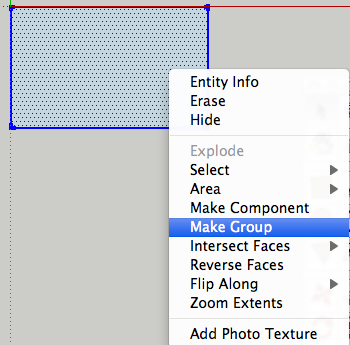

- Select the rectangle, then CTRL+click on it and select Make Group
- Select the move tool . Click on the midpoint at the top of the rectangle and slide left to the origin

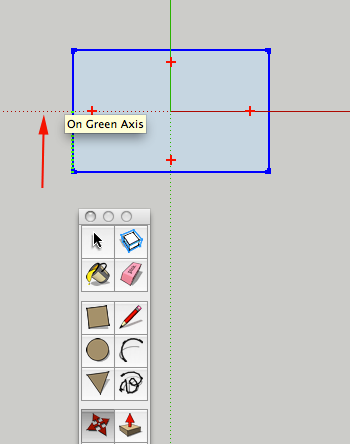

- With the move tool still selected, click on the midpoint on the left segment and drag up to the axis aligned with the origin
- Click in the center and click again, the rectangle should stay put.
- Select the Rotate tool and click at the origin. Press either CTRL or Option to make a copy, then click anywhere for the first rotation, but then move the cursor until the copied rectangle is vertical (rotated 90°):
- Select the Orbit tool and orbit the object until you get a view similar to this:
- Select the new rectangle and then select the Rotate tool again. Move the cursor up until the protractor is green. Press SHIFT to lock the protractor in its orientation, then click on the origin:
- Rotate the selection (you are not making a copy)
- Obit and select the Rotate tool. Move the Cursor until you get a red protractor
- Rotate a copy of the second rectangle 90°
- With the new rectangle still selected, place the protractor flat on the origin and rotate 90°
You should have 3 intersecting Golden Rectangles:
- Select the entire model and CTRL+ click. Select Explode (this will ungroup the rectangles)

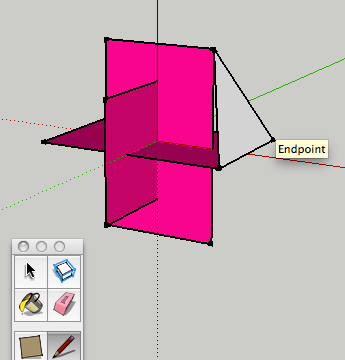

- Using the Line tool connect the endpoints to create triangles

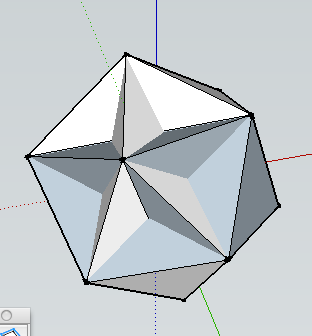

- Extra: Now delete the triangles:
