Using an External Editor

1. Open OpenSCAD



   ---

2. Select View>Hide Editor



   ---

3. Select Design>Automatic Reload and Compile



   ---

4. Select your favorite editor



   ---

5. If you're using BBEdit or TextWrangler download this plist from Thingiverse:
   OpenSCAD and BBedit or TextWrangler



   ---

6. Install the plist in ~/Library/Application Support/your_app/Language Modules.
   You might have to create the Language Modules folder.



   ---

Introduction

1. Constructive Solid Geometry
2. Extrusion of 2D outlines

Basics

1. If you do not have OpenSCAD installed yet, download the latest Development Snapshot from openscad.org



   ---

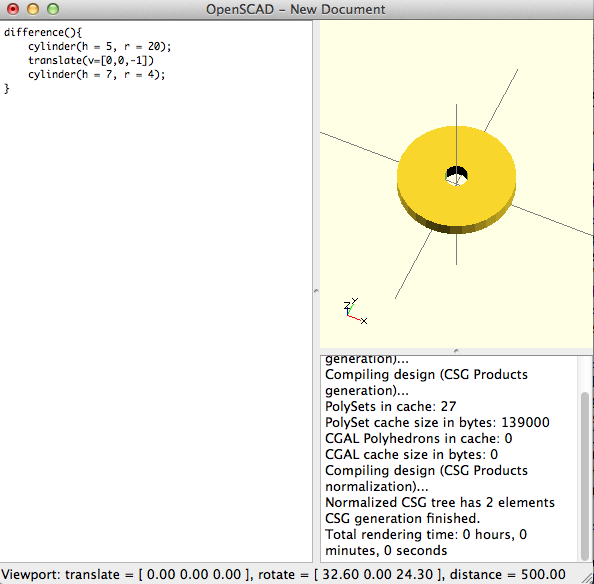

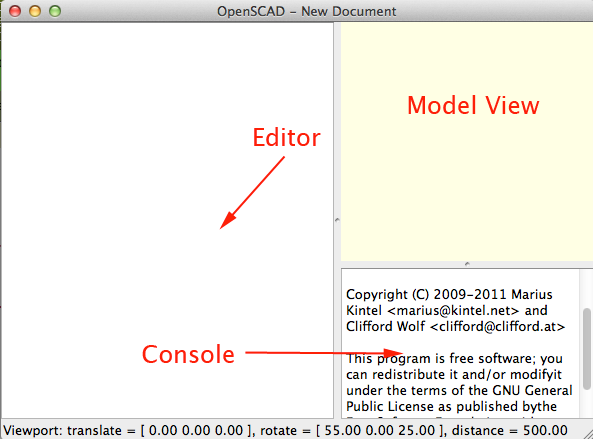

2. When you open OpenSCAD you will see the interface:




   ---

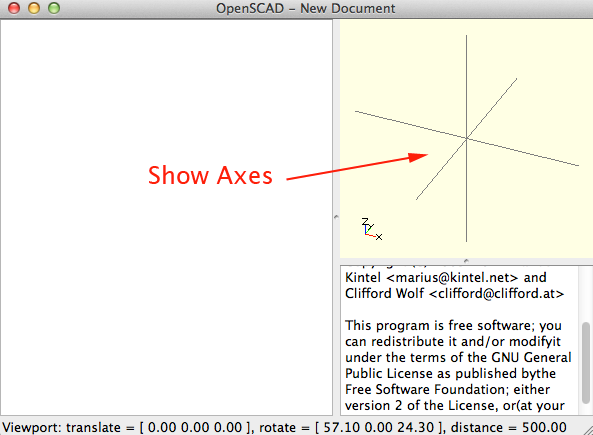

3. To display the axes in the model view press Command+2 (MAC) or CTRL+2 (Windows and Linux).




   ---

4. • Statements in OpenSCAD end with a semi-colon.

     cube([10,10,20]);






     ---

   • OpenSCAD does not automatically indent your code, but you are encouraged to use indents for readability

     difference(){
         cylinder(h = 5, r = 20);
         translate(v=[0,0,-1])
         cylinder(h = 7, r = 4);
     }






     ---

   • To comment out a single line begin the comment with a double-slash (//)

     //this is a comment

     myVar=10;//this is also a single-line comment






     ---

   • To comment out multiple lines, begin the comment with slash-star and end the comment with star-slash:

     /* This is a multi-line comment.
     I started the comment on the line above.
     I will complete the comment on the line below.
     */





     ---

   • Press F5 to render. This will show you what your model looks like in the model view




     ---

   • Press F6 to compile and render. This will create a model that is ready to export as an stl file:




     ---

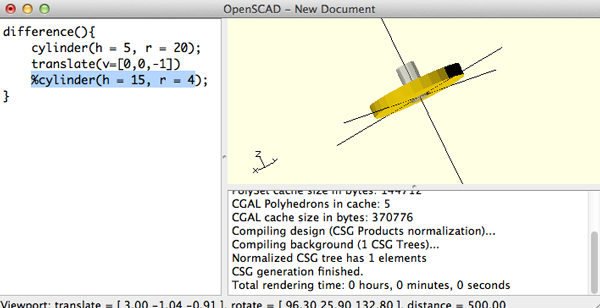

   • You can use %(the Background Modifier) to ignore the subtree for the normal rendering process and draw it in transparent gray. In other words to ghost an object. This is handy when you want to see what is being differenced:




     ---

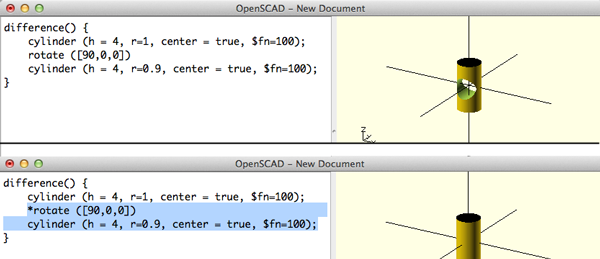

   • There is also * (the Disable Modifier), which will ignore the entire subtree.

     difference() {
             cylinder (h = 4, r=1, center = true, $fn=100);
             *rotate ([90,0,0]) cylinder (h = 4, r=0.9, center = true, $fn=100);
     }






     ---

   • $fn sets the resolution. This can be at the top of your file.

     Here is how to set the resolution to 128.

     $fn=128;






     ---

   • You can move the rendered object by:
     • Dragging with left mouse button to rotate the view. You can see the rotate values at the bottom of the window.


     • Also try dragging with the left mouse while holding down the SHIFT key.


     • Dragging with the right mouse button to translate (move) the view. You can see the translate values in the bottom of the window.


     • Also try dragging north and south with the right mouse while holding down the SHIFT key.


     • Using the mouse scroll to zoom in and out. The Viewport line at the bottom of the window will show a change in the distance value.

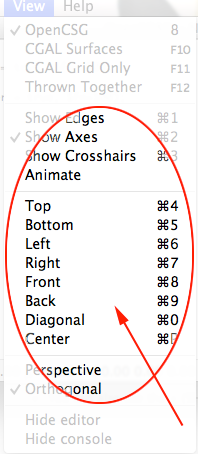

     • Use the following quick key combinations to control the view:







View Options

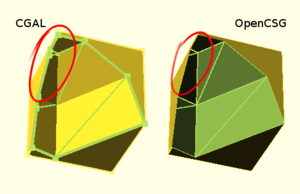

Show Edges (CTRL/⌘+1)

If Show Edges is enabled, both OpenCSG and CGAL mode will render edges as well as faces, CGAL will even show vertices. In CGAL grid mode, this option has no effect.


Enabling this option shows the difference between OpenCSG and CGAL quite clearly: While in CGAL mode you see an edge drawn everywhere it belongs, OpenCSG will not show edges resulting from boolean operations – this is because they were never explicitly calculated but are just where one object's Z clipping begins or ends.

Show Axes (CTRL/⌘+2)

If Show Axes is enabled, the origin of the global coordinate system will be indicated by an orthogonal axes indicator. Additionally, a smaller axes indicator with axes names will be shown in the lower left corner of the viewing area. The smaller axes indicator is marked x, y, z and coloured red, green, blue respectively.

Show Crosshairs (CTRL/⌘+3)

If Show Crosshairs is enabled, the center of the viewport will be indicated by four lines pointing in the room diagonal directions of the global coordinate system. This is useful when aligning the viewing area to a particular point in the model to keep it centered on screen during rotation.

Animation

The Animate option adds an animation bar to the lower edge of the screen. As soon as FPS and Steps are set (reasonable values to begin with are 10 and 100, respectively), the current Time is incremented by 1/Steps, FPS times per second, until it reaches 1, when it wraps back to 0.

Every time Time is changed, the program is re-evaluated with the variable $t set to the current time.

To see how animate works, download spiderbot and run the main.scad files

Primitives

cube

Creates a cube at the origin of the coordinate system. When center is true the cube will be centered on the origin, otherwise it is created in the first octant. The argument names are optional if the arguments are given in the same order as specified in the parameters

Cube Parameters

size
Size can be a decimal or a 3 value array. If a single number is given, the result will be a cube with sides of that length. If a 3 value array is given, then the values will correspond to the lengths of the X, Y, and Z sides. Default value is 1.

center
This is a Boolean, so it either set to true or false. This property determines the positioning of the object. If set to true, the object is centered at (0,0,0). Otherwise, the the object is placed in the positive quadrant with one corner at (0,0,0). The default is set to false. Usage examples:

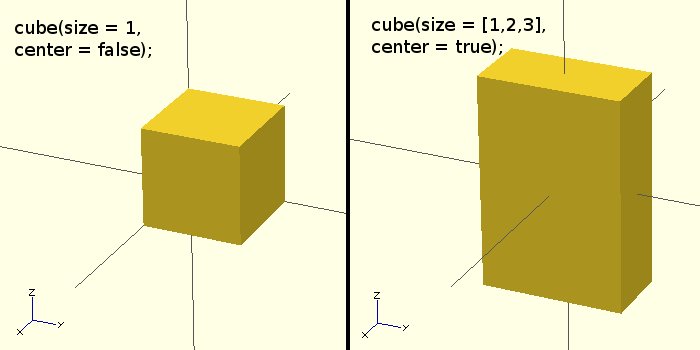

cube(size = 1, center = false);
cube(size = [1,2,3], center = true);

sphere

Creates a sphere at the origin of the coordinate system. The argument name is optional.

Sphere Parameters

r
r is a decimal. This is the radius of the sphere. The resolution of the sphere will be based on the size of the sphere and the $fa, $fs and $fn variables. Usage examples:

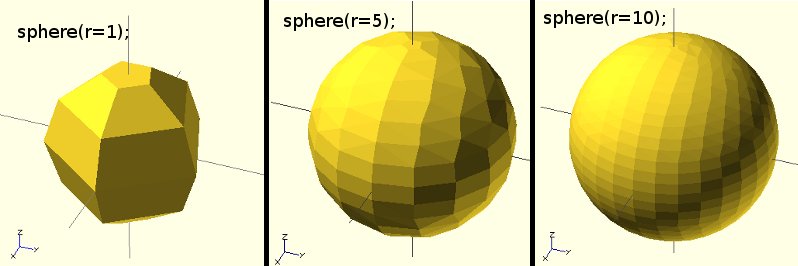

sphere(r = 1);
sphere(r = 5);
sphere(r = 10);
sphere(2, $fn=100); // this will create a high resolution sphere with a 2mm radius
sphere(2, $fa=5, $fs=0.1); // will also create a 2mm high resolution sphere but this one does not have as many small triangles on the poles of the sphere

cylinder

Creates a cylinder at the origin of the coordinate system. When both radii are same it is also possible to specify a single radius using the argument name r. The argument names are optional if the arguments are given in the same order as specified above.

Cylinder Parameters

h
h is a decimal. This is the height of the cylinder. Default value is 1.

r1
r1 is a decimal. This is the radius of the cylinder/cone on bottom end. Default value is 1.

r2
r2 is a decimal. This is the radius of the cylinder/cone on top end. Default value is 1.

r
Decimal. The radius of both top and bottom ends of the cylinder. Use this parameter if you want a non-cone shaped cylinder. Default value is 1.

$fa
$fa is angle in degrees

$fs
$fs is angle in mm Usage examples:

cylinder(h = 10, r1 = 10, r2 = 20, center = false);
cylinder(h = 10, r1 = 20, r2 = 10, center = true);
cylinder(h = 10, r=20);
cylinder(h = 10, r=20, $fs=6);

Helpful Tip: The $fn parameter dictates how many facets the circumference of your cylinder will have. A cylinder with 8 facets will look like an octagon and a cylinder with 128 facets would probably look almost perfectly circular. You can make triangles by creating cylinders with $fn=3 or just three facets. This is a quick and simple way to get an equilateral triangle.

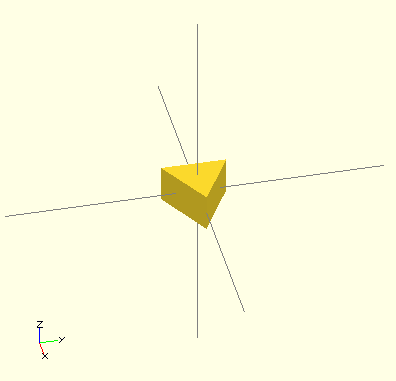

cylinder(h=10,r=10,$fn=3, center=true);

polyhedron

Creates a cylinder at the origin of the coordinate system. When both radii are same it is also possible to specify a single radius using the argument name r. The argument names are optional if the arguments are given in the same order as specified above. Usage examples:

polyhedron(points = [ [x, y, z], ... ], triangles = [ [p1, p2, p3..], ... ], convexity = N);

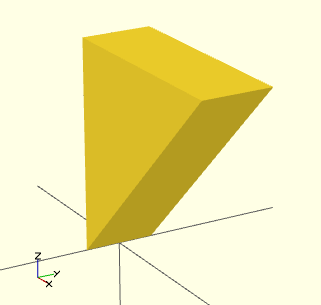

polyhedron(points=[[0,0,0],[100,0,0],[0,100,0],[0,100,100]], triangles=[[0,1,2],[1,0,3],[0,2,3],[2,1,3]]);

polyhedron ( points = [[0, -10, 60], [0, 10, 60], [0, 10, 0], [0, -10, 0], [60, -10, 60], [60, 10, 60]],
triangles = [[0,3,2], [0,2,1], [3,0,4], [1,2,5], [0,5,4], [0,1,5],  [5,2,4], [4,2,3], ]);

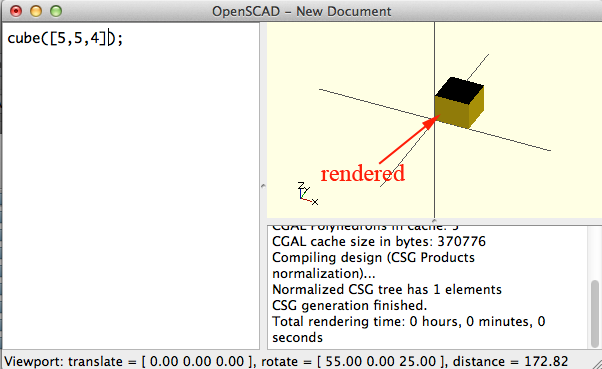

Your First Model

1. Open OpenSCAD.



   ---

2. Type the following into the editor window:

   cube([5,5,4]);






   ---

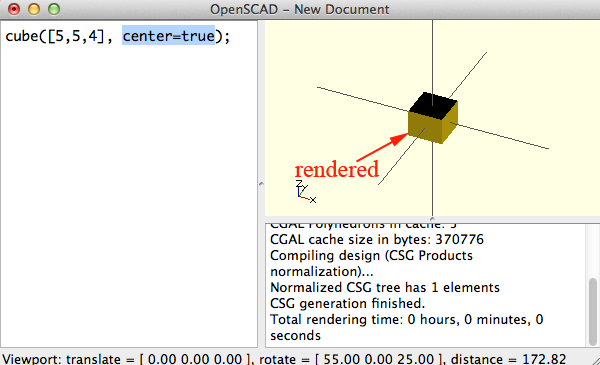

3. Make sure that when you render, you see the axes. If you do not see them, turn on Show Axes under the View Menu or press Command+2 (MAC) or CTRL+2 (Windows and Linux).





   ---

4. You should notice that the object is rendered in the first quadrant. By adding center=true to the first statement, you can center the cube on the axes lines:




   ---

5. To create another cube, you could copy and paste the line of code. You won't see the second cube.
   Why not?

   You won't see the second cube because both cubes are occupying the same space.

   To move the second cube away, you have to call translate().

   This line is a bit weird because it doesn't end in a semi-colon.
   Why not?

   It doesn't have a semi-colon because the translate() call is part of the cube statement:

   cube([5,5,4]);
   translate([6,0,0])
   cube([5,5,4], center=true);






   ---

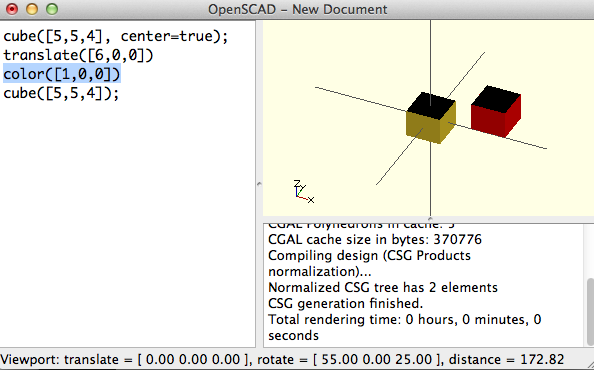

6. color() like translate() is part of the object statement.
   Here is how you would make the second object red:

   cube([5,5,4]);
   translate([6,0,0])
   color([1,0,0])
   cube([5,5,4]);






   While the color of your model in OpenSCAD does not determine how your model will print, it is nice to be able to control the colors. To change the color use the following syntax:

   //using color names
   color("name_of_color_from_list_below")
   cube([5,5,4], center=true);


   or

   //using RGB values from 0-1.0
   color([1,0,0])
   cube([5,5,4]);


   A chart of the color names is as follows:


   Purples Lavender Thistle Plum Violet Orchid Fuchsia Magenta MediumOrchid MediumPurple BlueViolet DarkViolet DarkOrchid DarkMagenta Purple Indigo DarkSlateBlue SlateBlue MediumSlateBlue Pinks Pink LightPink HotPink DeepPink MediumVioletRed PaleVioletRed

   Blues Aqua Cyan LightCyan PaleTurquoise Aquamarine Turquoise MediumTurquoise DarkTurquoise CadetBlue SteelBlue LightSteelBlue PowderBlue LightBlue SkyBlue LightSkyBlue DeepSkyBlue DodgerBlue CornflowerBlue RoyalBlue Blue MediumBlue DarkBlue Navy MidnightBlue Reds IndianRed LightCoral Salmon DarkSalmon LightSalmon Red Crimson FireBrick DarkRed

   Greens GreenYellow Chartreuse LawnGreen Lime LimeGreen PaleGreen LightGreen MediumSpringGreen SpringGreen MediumSeaGreen SeaGreen ForestGreen Green DarkGreen YellowGreen OliveDrab Olive DarkOliveGreen MediumAquamarine DarkSeaGreen LightSeaGreen DarkCyan Teal Oranges LightSalmon Coral Tomato OrangeRed DarkOrange Orange

   Yellows Gold Yellow LightYellow LemonChiffon LightGoldenrodYellow PapayaWhip Moccasin PeachPuff PaleGoldenrod Khaki DarkKhaki Browns Cornsilk BlanchedAlmond Bisque NavajoWhite Wheat BurlyWood Tan RosyBrown SandyBrown Goldenrod DarkGoldenrod Peru Chocolate SaddleBrown Sienna Brown Maroon

   Whites White Snow Honeydew MintCream Azure AliceBlue GhostWhite WhiteSmoke Seashell Beige OldLace FloralWhite Ivory AntiqueWhite Linen LavenderBlush MistyRose Grays Gainsboro LightGrey Silver DarkGray Gray DimGray LightSlateGray SlateGray DarkSlateGray Black




   ---

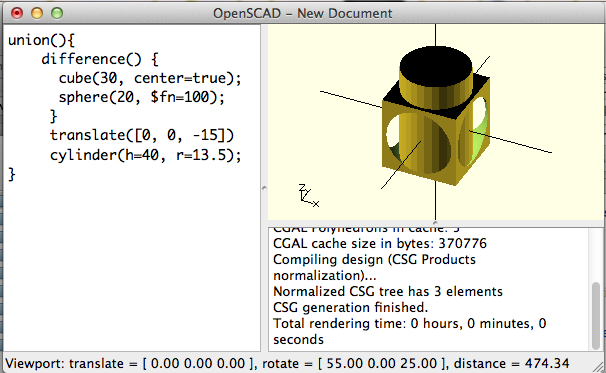

7. Replace the cubes with the following lines of code and render:

   union(){
       difference() {
         cube(30, center=true);
         sphere(20, $fn=100);
        }
        translate([0, 0, -15])
        cylinder(h=40, r=13.5);
   }





   ---

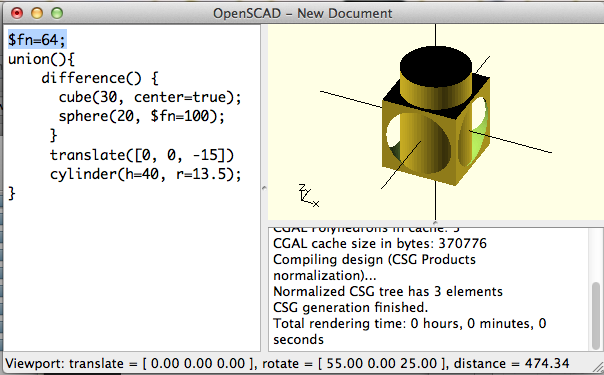

8. Now add this line to the very beginning:

   $fn=64;

   And re-render:


   union(), difference() and intersection() are examples of boolean operations

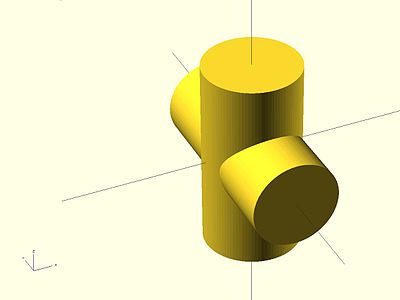

   union() creates a union of all the child nodes.

   union() {
           cylinder (h = 4, r=1, center = true, $fn=100);
           rotate ([90,0,0]) cylinder (h = 4, r=0.9, center = true, $fn=100);
   }

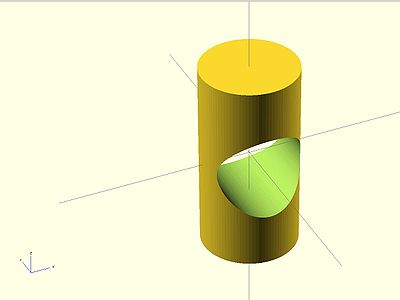

   difference() subtracts the second (and all further) child nodes from the first.

   difference() {
           cylinder (h = 4, r=1, center = true, $fn=100);
           rotate ([90,0,0]) cylinder (h = 4, r=0.9, center = true, $fn=100);
   }

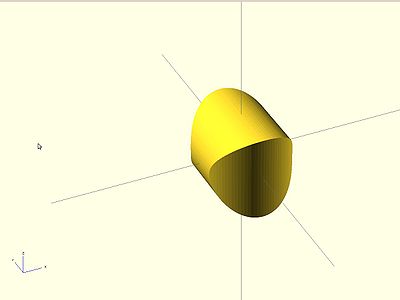

   intersection() creates the intersection of all child nodes and keeps the overlapping portion:

   intersection() {
           cylinder (h = 4, r=1, center = true, $fn=100);
           rotate ([90,0,0]) cylinder (h = 4, r=0.9, center = true, $fn=100);
   }






   ---

Exercise

1. The following lines of code will create a cylinder 5mm high with a diameter of 40.
   An 8mm cylinder is cut out of the center. Notice that the second cylinder has a height of 7 and is translated by -1 on the z-axis. This ensures that the cut is not exactly aligned with the first cylinder and the cut is clean:

   $fn=64;
   difference(){
       cylinder(h = 5, r = 20);
       translate(v=[0,0,-1])
       cylinder(h = 7, r = 4);
   }





   ---

2. Use translate to move the smaller cylinder to the right:




   ---

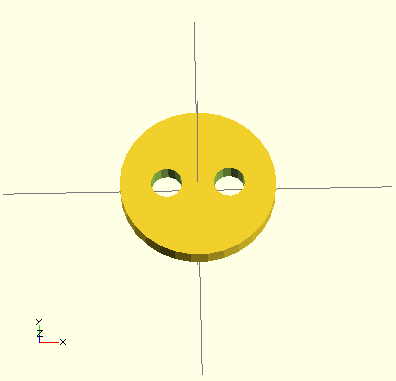

3. Cut out another cylinder on the left:




   ---

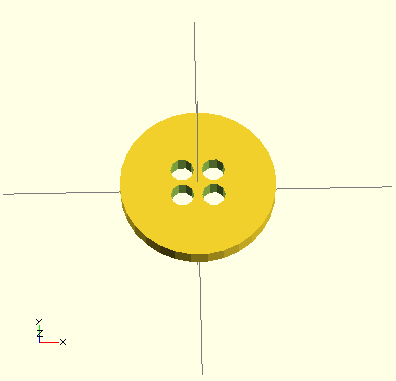

4. Create 4 holes:




   ---

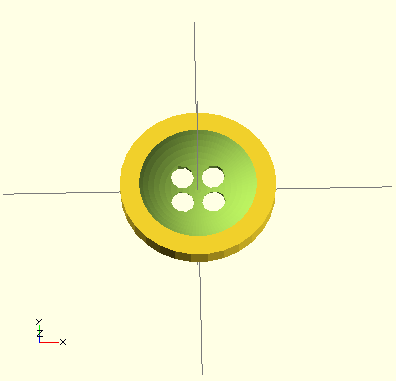

5. Now make this shape:


   You'll have to remove a sphere: sphere(r=5,$fn=100);



   ---

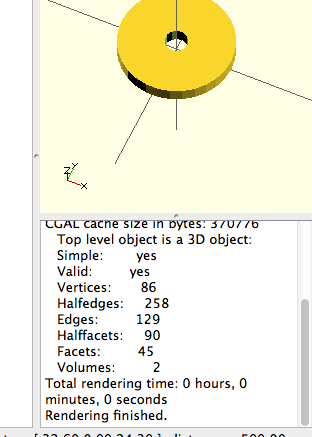

6. Compile and Render (F6)



   ---

7. Export as STL (Design>Export as STL). Save the file when it tells you to.



   ---

Modules

module Name_of_module(param1,param2,...){
//statements...
}

module house(roof="flat", paint=[1,0,0]){
    color(paint)
    if(roof=="flat"){
        translate([0,-1,0])
        cube();
    }else if( roof=="pitched"){
       rotate([90,0,0])
       linear_extrude(height=1)
       polygon(points=[[0,0],[0,1],[0.5,1.5],[1,1],[1,0]],paths=[ [0,1,2,3,4] ]);
    }else if(roof=="domical"){
       translate([0,-1,0])
        union(){
            translate([0.5,0.5,1])
            sphere(r=0.5,$fn=20);
            cube();
        }
    }
}

house();
translate([1,0,0])
house("pitched", [0,1,0]);

Creating a Module

1. Open OpenSCAD



   ---

2. In the editor add code to define the name of a module. The module should be called join_two_points. This module will take the following parameters:
   • x1
   • y1
   • z1
   • x2
   • y2
   • z2
   • diameter




   ---

3. You will use the distance formula to create the value for a variable called length.

   Inside the module, create a variable called length and set it to

   sqrt( pow(x1 - x2, 2) + pow(y1 - y2, 2) + pow(z1 - z2, 2) );


   ---

4. Tertiary syntax allows you to test a conditional and assign a value based on the evaluation in one line:

   //if a is less than b then set the string to "hello"
   //if a is not less than b then set the string to "good bye"
    ((a<b) ? string="hello": string="good bye");


   You want to determine if the difference between the y1 and y2 is not 0. If this condition is met than you want to set alpha to the inverse tangent (arctangent) of (z2 - z1) / (y2 - y1).

   The arctangent is used to calculate the angles of a right triangle. It will return the angle of the given ratio.

   To illustrate arctangent, start with a right triangle with sides a and b. The typical way to use the tangent function is to calculate the ratio of the two non-hypotenuse sides of a right triangle, such as a and b, from the angle (θ) between b and the hypotenuse. This is indicated as tan(θ) = b / a.

   arctangent works in the opposite direction; you can use the ratio b / a to find the angle θ, such that θ = atan(b / a).

   Create a variable named beta and if x2- x1 does not equal 0 than set beta to 90-atan( (z2 - z1) / (x2 - x1) ) otherwise set it to 90- 0.



   ---

5. Create a variable named gamma and if x2- x1 does not equal 0 than
   set gamma to atan( (y2 - y1) / (x2 - x1)

   Otherwise
   set gamma to ( (y2 - y1 >= 0) ? 90 : -90 ) ) + ( (x2 - x1 >= 0) ? 0 : -180 )



   ---

6. To display values of variables, you use the keyword echo

   	echo(Length = length, Alpha = alpha, Beta = beta, Gamma = gamma);






   ---

7. Call translate() and translate the object by x1, y1, z1



   ---

8. Call rotate() and rotate the object by 0, beta, gamma



   ---

9. Create a cylinder where the height = length and radius = diameter/2



   ---

10. To use the module you specify the starting x, y and z and the ending x, y and z:

    join_two_points(0, 0, 0, 50, 0, 0, 5 ); // +X
    join_two_points( 50, 0, 0, 50, 50, 0, 5 ); // -X
    join_two_points(  50, 50, 0, 0, 50, 0, 5 ); // +Y
    join_two_points( 0, 50, 0, 0, 0, 0, 5 ); // -Y
    join_two_points( 0, 0, 0, -50, -50,0, 5 ); // -X -Y
    join_two_points( 0, 0, 0, 50, 50, 50, 5 ); // +XYZ






    ---

11. Here is the module to add rounded corners:

    module corner(x, y, z, diameter){
    	translate([x, y, z])
    	sphere( r = diameter/2 );
    }





    ---

12. This code:

    diameter=2;
    cubeHeight=10;
    width=50;
    length=50;
    innerWidth=20;
    innerLength=10;
    translate([-25,-25,-10]){
    	cube([width,length,cubeHeight]);
    		for(z=[0:2]){
    			perimeter(width,length,cubeHeight+z*diameter,diameter);
    		}
    		translate([(width-innerWidth)/2,(length-innerLength)/2,0]){
    			for(z=[0:2]){
    			perimeter(innerWidth,innerLength,cubeHeight+z*diameter,diameter);
    		}
    	}
    }

    produces this:




    ---

13. Complete the program by creating the module perimeter.



    ---

14. View the model by pressing F5.



    ---

15. Render and Compile by pressing F6. Then select Design>Export as STL



    ---

Using Variables

module house(roof="flat", paint=[1,0,0], s=20){
    color(paint)
    if(roof=="flat"){
        translate([0,-s,0])
         cube(s);
    }else if( roof=="pitched"){
       rotate([90,0,0])
       linear_extrude(height=s)
       polygon(points=[[0,0],[0,s],[s/2,3*s/2],[s,s],[s,0]],paths=[ [0,1,2,3,4] ]);
    }else if(roof=="domical"){
       translate([0,-s,0])
    	   union(){
       	translate([s/2,s/2,s])
		sphere(r=s/2,$fn=20);
      	cube(s);
       }
    }
}

  house();
  translate([40,0,0]) house("pitched");
  translate([80,0,0]) house("domical",[0,1,1]);
  translate([0,40,0]) house(roof="pitched",paint=[0,0,1]);
  translate([20,20,0]) house(paint=[0,0,0],roof="pitched");
  translate([60,40,0]) house(roof="domical");
  translate([80,60,0]) house(paint=[0,.5,.2]);


Loops

for (i = [-1, 1]){
    translate([0, 0, i])
    cube(size = 1, center = false);
}

$fn=64;
for ( i = [0 : 5] ){
    rotate( i * 60, [1, 0, 0])
    translate([0, 10, 0])
    sphere(r = 10);
}

$fn=64;
for ( i = [0 : 0.2 : 6] ){
    rotate( i * 60, [1, 0, 0])
    translate([0, 10, 0])
    sphere(r = 1);
}

for (i = [0:5]) {
    echo(360*i/6, sin(360*i/6)*80, cos(360*i/6)*80);
    translate([sin(360*i/6)*80, cos(360*i/6)*80, 0 ])
    cylinder(h = 10, r=10);
}
for (i =  [0 : 0.1 : 6]) {
    echo(360*i/6, sin(360*i/6)*80, cos(360*i/6)*80);
    translate([sin(360*i/6)*80, cos(360*i/6)*80, 0 ])
    cylinder(h = 10, r=5);
}

for (i = [10:50]){
    assign (angle = i*360/20, distance = i*10, r = i*2){
        rotate(angle, [1, 0, 0])
        translate([0, distance, 0])
        sphere(r = r);
    }
}

module lineup(num, space) {
  for (i = [0 : num-1])
    translate([ space*i, 0, 0 ]) child(0);
}

lineup(7, 22) cube(20);

module elongate(){
    for (i = [0 : $children-1]){
            scale([10 , 1, 1 ]) child(i);
    }
}

elongate() {
    sphere(30);
    cube([10,10,10]);
    cylinder(r=10,h=50);
}

//this code is from example018.scad in the application's example directory
module step(len, mod)
{
    for (i = [0:$children-1])
        translate([ len*(i - ($children-1)/2), 0, 0 ]) child((i+mod) % $children);
}

for (i = [1:4])
{
    translate([0, -250+i*100, 0]) step(100, i)
    {
        sphere(30);
        cube(60, true);
        cylinder(r = 30, h = 50, center = true);

        union() {
            cube(45, true);
            rotate([45, 0, 0]) cube(50, true);
            rotate([0, 45, 0]) cube(50, true);
            rotate([0, 0, 45]) cube(50, true);
        }
    }
}

Libraries

• pinhole(h=10, r=4, lh=3, lt=1, t=0.3, tight=true)
  Where:

  h = shaft height
  r = shaft radius
  lh = lip height
  lt = lip thickness
  t = tolerance
  tight = set to false if you want a joint that spins easily


• pin(h=10, r=4, lh=3, lt=1, side=false)
  Where:

  h = shaft height
  r = shaft radius
  lh = lip height
  lt = lip thickness
  side = set to true if you want it printed horizontally


• pintack(h=10, r=4, lh=3, lt=1, bh=3, br=8.75)
  Where:

  h = shaft height
  r = shaft radius
  lh = lip height
  lt = lip thickness
  bh = base_height
  br = base_radius


• pinpeg(h=20, r=4, lh=3, lt=1)
  Where:

  h = shaft height
  r = shaft radius
  lh = lip height
  lt = lip thickness


• pin_vertical(h=10, r=4, lh=3, lt=1)
  Where:

  h = shaft height
  r = shaft radius
  lh = lip height
  lt = lip thickness

• pin_horizontal(h=10, r=4, lh=3, lt=1)
  Where:

  h = shaft height
  r = shaft radius
  lh = lip height
  lt = lip thickness


• pin_solid(h=10, r=4, lh=3, lt=1)
  Where:

  h = shaft height
  r = shaft radius
  lh = lip height
  lt = lip thickness


• test()

// Pin Connectors V2
// Tony Buser <tbuser@gmail.com>


module test() {
  tolerance = 0.3;

  translate([-12, 12, 0]) pinpeg(h=20);
  translate([12, 12, 0]) pintack(h=10);

  difference() {
    union() {
      translate([0, -12, 2.5]) cube(size = [59, 20, 5], center = true);
      translate([24, -12, 7.5]) cube(size = [12, 20, 15], center = true);
    }
    translate([-24, -12, 0]) pinhole(h=5, t=tolerance);
    translate([-12, -12, 0]) pinhole(h=5, t=tolerance, tight=false);
    translate([0, -12, 0]) pinhole(h=10, t=tolerance);
    translate([12, -12, 0]) pinhole(h=10, t=tolerance, tight=false);
    translate([24, -12, 15]) rotate([0, 180, 0]) pinhole(h=10, t=tolerance);
  }
}

module pinhole(h=10, r=4, lh=3, lt=1, t=0.3, tight=true) {
  // h = shaft height
  // r = shaft radius
  // lh = lip height
  // lt = lip thickness
  // t = tolerance
  // tight = set to false if you want a joint that spins easily

  union() {
    pin_solid(h, r+(t/2), lh, lt);
    cylinder(h=h+0.2, r=r);
    // widen the cylinder slightly
    // cylinder(h=h+0.2, r=r+(t-0.2/2));
    if (tight == false) {
      cylinder(h=h+0.2, r=r+(t/2)+0.25);
    }
    // widen the entrance hole to make insertion easier
    translate([0, 0, -0.1]) cylinder(h=lh/3, r2=r, r1=r+(t/2)+(lt/2));
  }
}

module pin(h=10, r=4, lh=3, lt=1, side=false) {
  // h = shaft height
  // r = shaft radius
  // lh = lip height
  // lt = lip thickness
  // side = set to true if you want it printed horizontally

  if (side) {
    pin_horizontal(h, r, lh, lt);
  } else {
    pin_vertical(h, r, lh, lt);
  }
}

module pintack(h=10, r=4, lh=3, lt=1, bh=3, br=8.75) {
  // bh = base_height
  // br = base_radius

  union() {
    cylinder(h=bh, r=br);
    translate([0, 0, bh]) pin(h, r, lh, lt);
  }
}

module pinpeg(h=20, r=4, lh=3, lt=1) {
  union() {
    translate([0, -h/4+0.05, 0]) pin(h/2+0.1, r, lh, lt, side=true);
    translate([0, h/4-0.05, 0]) rotate([0, 0, 180]) pin(h/2+0.1, r, lh, lt, side=true);
  }
}

// just call pin instead, I made this module because it was easier to do the rotation option this way
// since openscad complains of recursion if I did it all in one module
module pin_vertical(h=10, r=4, lh=3, lt=1) {
  // h = shaft height
  // r = shaft radius
  // lh = lip height
  // lt = lip thickness

  difference() {
    pin_solid(h, r, lh, lt);

    // center cut
    translate([-r*0.5/2, -(r*2+lt*2)/2, h/4]) cube([r*0.5, r*2+lt*2, h]);
    translate([0, 0, h/4]) cylinder(h=h+lh, r=r/2.5, $fn=20);
    // center curve
    // translate([0, 0, h/4]) rotate([90, 0, 0]) cylinder(h=r*2, r=r*0.5/2, center=true, $fn=20);

    // side cuts
    translate([-r*2, -lt-r*1.125, -1]) cube([r*4, lt*2, h+2]);
    translate([-r*2, -lt+r*1.125, -1]) cube([r*4, lt*2, h+2]);
  }
}

// call pin with side=true instead of this
module pin_horizontal(h=10, r=4, lh=3, lt=1) {
  // h = shaft height
  // r = shaft radius
  // lh = lip height
  // lt = lip thickness
  translate([0, h/2, r*1.125-lt]) rotate([90, 0, 0]) pin_vertical(h, r, lh, lt);
}

// this is mainly to make the pinhole module easier
module pin_solid(h=10, r=4, lh=3, lt=1) {
  union() {
    // shaft
    cylinder(h=h-lh, r=r, $fn=30);
    // lip
    // translate([0, 0, h-lh]) cylinder(h=lh*0.25, r1=r, r2=r+(lt/2), $fn=30);
    // translate([0, 0, h-lh+lh*0.25]) cylinder(h=lh*0.25, r2=r, r1=r+(lt/2), $fn=30);
    // translate([0, 0, h-lh+lh*0.50]) cylinder(h=lh*0.50, r1=r, r2=r-(lt/2), $fn=30);

    // translate([0, 0, h-lh]) cylinder(h=lh*0.50, r1=r, r2=r+(lt/2), $fn=30);
    // translate([0, 0, h-lh+lh*0.50]) cylinder(h=lh*0.50, r1=r+(lt/2), r2=r-(lt/3), $fn=30);

    translate([0, 0, h-lh]) cylinder(h=lh*0.25, r1=r, r2=r+(lt/2), $fn=30);
    translate([0, 0, h-lh+lh*0.25]) cylinder(h=lh*0.25, r=r+(lt/2), $fn=30);
    translate([0, 0, h-lh+lh*0.50]) cylinder(h=lh*0.50, r1=r+(lt/2), r2=r-(lt/2), $fn=30);

    // translate([0, 0, h-lh]) cylinder(h=lh, r1=r+(lt/2), r2=1, $fn=30);
    // translate([0, 0, h-lh-lt/2]) cylinder(h=lt/2, r1=r, r2=r+(lt/2), $fn=30);
  }
}

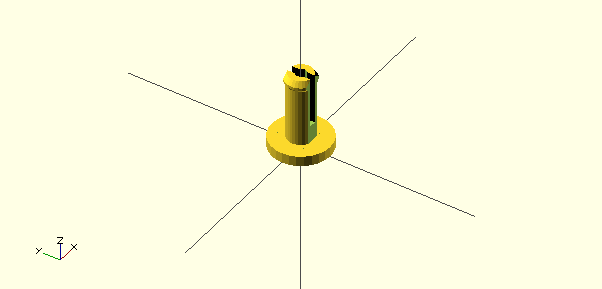

pintack(10);

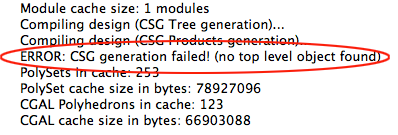

• Save both files in the same directory.
• The first line in your second file should use include or use

include <pins.scad>

use <pins.scad>

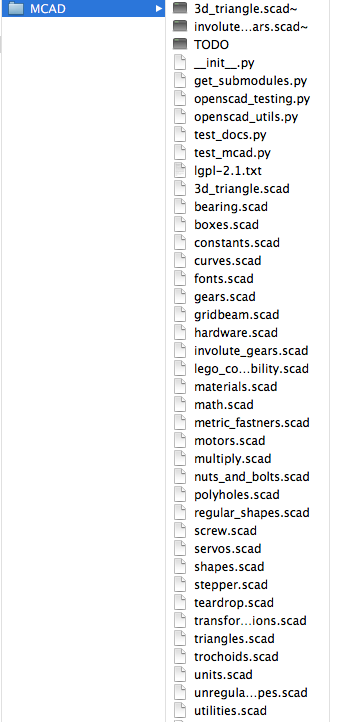

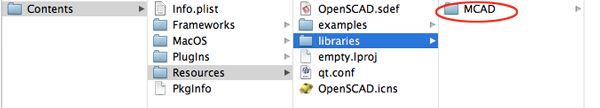

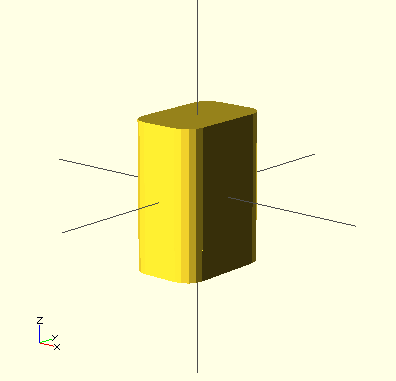

MCAD Libraries

use <MCAD/boxes.scad>
roundedBox([30, 30, 40], 5, true);

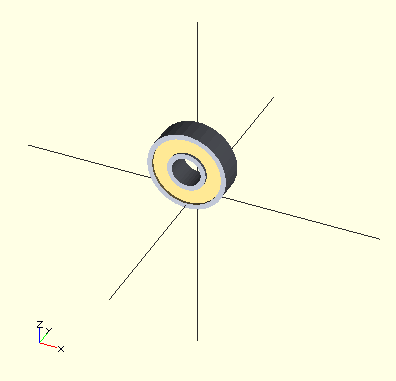

bearing.scad

test_bearing() displays a 608 bearing inside a test_bearing_hole.

test_bearing_hole() displays a a cube (size=[30, 30, 7-10*epsilon] ) to hold a bearing.

bearingDimensions(model) Sets the dimensions for the following bearing numbers. 608 (Skatebearing) is the model default.
608 = [8*mm, 22*mm, 7*mm]
623 = [3*mm, 10*mm, 4*mm]
624 = [4*mm, 13*mm, 5*mm]
627 = [7*mm, 22*mm, 7*mm]
688 = [8*mm, 16*mm, 4*mm]
698 = [8*mm, 19*mm, 6*mm]


bearing(pos=[0,0,0], angle=[0,0,0], model=SkateBearing, outline=false, material=Steel, sideMaterial=Brass)

example

bearing([0,0,10],[90,0,0]);

boxes.scad

roundedBox([width, height, depth], float radius, bool sidesonly)

example

roundedBox([20, 30, 40], 5, true)

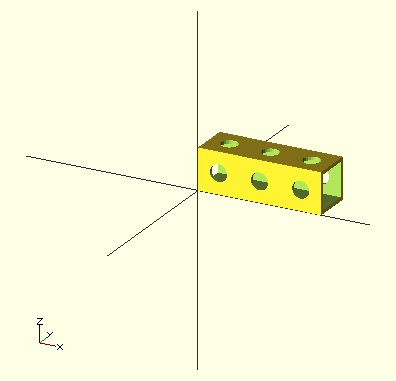

gridbeam.scad

zBeam(segments) create a vertical gridbeam strut 'segments' long

xBeam(segments) create a horizontal gridbeam strut along the X axis

yBeam(segments) create a horizontal gridbeam strut along the Y axis

topShelf(width, depth, corners) create a shelf suitable for use in gridbeam structures width and depth in 'segments', corners == 1 notches corners

bottomShelf(width, depth, corners) like topShelf, but aligns shelf to underside of beams

backBoard(width, height, corners) create a backing board suitable for use in gridbeam structures width and height in 'segments', corners == 1 notches corners

frontBoard(width, height, corners) like backBoard, but aligns board to front side of beams

translateBeam([x, y, z]) translate gridbeam struts or shelves in X, Y, or Z axes in units 'segments'

example

xBeam(3)

metric_fastners.scad

cap_bolt(dia,len)

csk_bolt(dia,len)

washer(dia)

flat_nut(dia)

bolt(dia,len)

cylinder_chamfer(r1,r2)

chamfer(len,r)

example

translate([-20,0,0])
csk_bolt(3,14);
translate([-10,0,0])
washer(3);
translate([0,0,0])
flat_nut(3);

translate([10,0,0])
bolt(4,14);
translate([-15,-12,0])
cylinder_chamfer(8,1);
translate([0,-15,0])
chamfer(10,2);

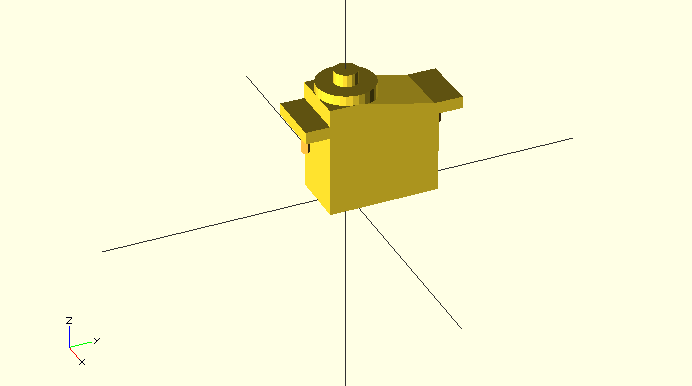

motors.scad

example

regular_shapes.scad

triangle(radius);

reg_polygon(sides,radius);

hexagon(radius);

heptagon(radius);

octagon(radius);

nonagon(radius);

decagon(radius);

hendecagon(radius);

dodecagon(radius);

ellipse(width, height);

egg_outline(width, length);

cone(height, radius, center = false) ;

oval_prism(height, rx, ry, center = false) ;

oval_tube(height, rx, ry, wall, center = false) ;

cylinder_tube(height, radius, wall, center = false) ;

tubify(radius,wall);

triangle_prism(height,radius);

triangle_tube(height,radius,wall);

pentagon_prism(height,radius);

pentagon_tube(height,radius,wall);

hexagon_prism(height,radius) ;

heptagon_prism(height,radius) ;

octagon_prism(height,radius) ;

nonagon_prism(height,radius);

decagon_prism(height,radius);

hendecagon_prism(height,radius);

dodecagon_prism(height,radius);

torus(outerRadius, innerRadius);

triangle_pyramid(radius);

square_pyramid(base_x, base_y,height);

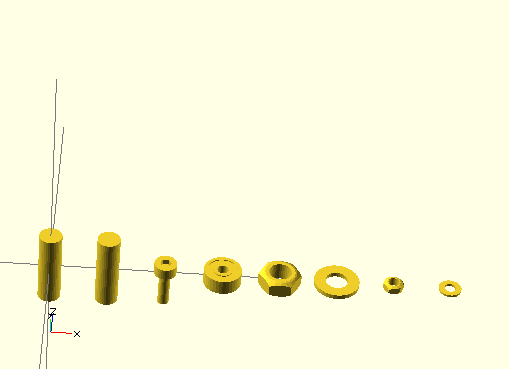

hardware.scad

rod(length, threaded)

screw(length, nutpos, washer, bearingpos = -1)

bearing(position)

nut(position, washer)

washer(position)

rodnut(position, washer)

rodwasher(position)

example

rod(20);
translate([rodsize * 2.5, 0, 0]) rod(20, true);
translate([rodsize * 5, 0, 0]) screw(10, true);
translate([rodsize * 7.5, 0, 0]) bearing();
translate([rodsize * 10, 0, 0]) rodnut();
translate([rodsize * 12.5, 0, 0]) rodwasher();
translate([rodsize * 15, 0, 0]) nut();
translate([rodsize * 17.5, 0, 0]) washer();

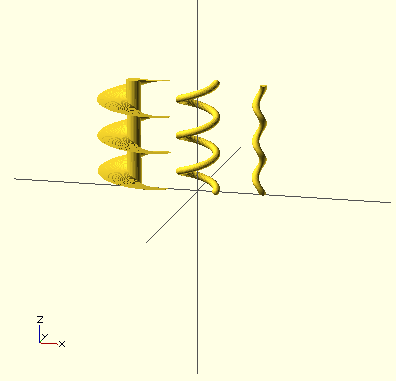

screw.scad

helix(pitch, length, slices=500);

auger(pitch, length, outside_diameter, inner_diameter);

test_auger();

ball_groove(pitch, length, diameter, ball_radius=10);

test_ball_groove();

ball_groove2(pitch, length, diameter, ball_radius, slices=200);

test_ball_groove2();

example

translate([-180,0,0])
auger(100, 300);

ball_groove2(100, 300, 100, 10);

translate([170,0,0])
ball_groove(100, 300, 10);

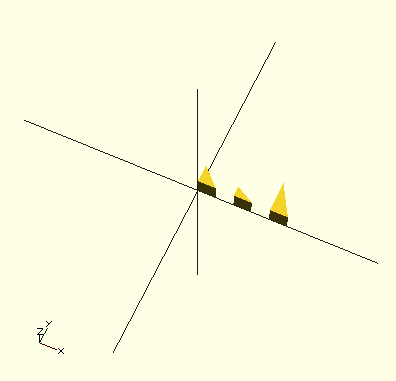

triangles.scad

triangle(o_len, a_len, depth)

a_triangle(tan_angle, a_len, depth)

example

triangle(5, 5, 5);

translate([10,0,0])
 a_triangle(30, 5, 5);

translate([20,0,0])
a_triangle(60, 5, 5);

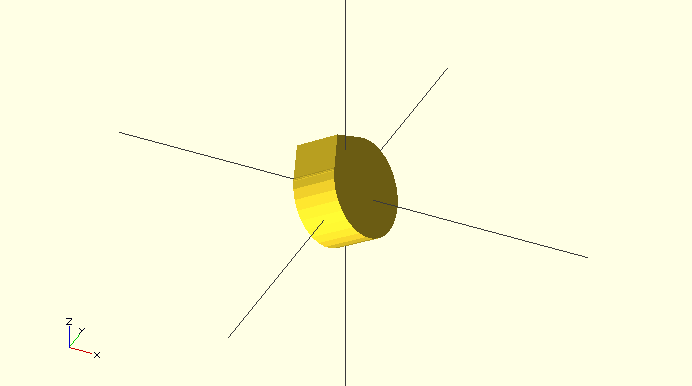

teardrop.scad

This script generates a teardrop shape at the appropriate angle to prevent overhangs greater than 45 degrees. The angle is in degrees, and is a rotation around the Y axis. You can then rotate around Z to point it in any direction. Rotation around X or Y will cause the angle to be wrong.

teardrop(radius, length, angle)

example

teardrop(10, 10, 60);

stepper.scad

motor(model=Nema23, size=NemaMedium, dualAxis=false, pos=[0,0,0], orientation = [0,0,0])

example

rotate([0,180,0])
 motor(Nema17);

shapes.scad

box(width, height, depth);

roundedBox(width, height, depth, radius);

cone(height, radius, center = false) ;

ellipticalCylinder(w,h, height, center = false);

ellipsoid(w, h, center = false);

tube(height, radius, wall, center = false);

tube2(height, ID, OD, center = false);

ovalTube(height, rx, ry, wall, center = false);

ngon(sides, radius, center=false);

hexagon(size, height);

octagon(size, height);

dodecagon(size, height);

hexagram(size, height);

rightTriangle(adjacent, opposite, height);

equiTriangle(side, height);

12ptStar(size, height);

dislocateBox(w, h, d);

servo.scad

For the Align DS420 digital servo

alignds420(position, rotation, screws = 0, axle_lenght = 0)

example

alignds420(screws=1);

involute_gears.scad

bevel_gear_pair ( gear1_teeth = 41, gear2_teeth = 7, axis_angle = 90, outside_circular_pitch=1000)

bevel_gear ( number_of_teeth=11, cone_distance=100, face_width=20, outside_circular_pitch=1000, pressure_angle=30, clearance = 0.2, bore_diameter=5, gear_thickness = 15, backlash = 0, involute_facets=0, finish = -1)

nvolute_bevel_gear_tooth ( back_cone_radius, root_radius, base_radius, outer_radius, pitch_apex, cone_distance, half_thick_angle, involute_facets)

gear ( number_of_teeth=15, circular_pitch=false, diametral_pitch=false, pressure_angle=28, clearance = 0.2, gear_thickness=5, rim_thickness=8, rim_width=5, hub_thickness=10, hub_diameter=15, bore_diameter=5, circles=0, backlash=0, twist=0, involute_facets=0, flat=false)

gear_shape ( number_of_teeth, pitch_radius, root_radius, base_radius, outer_radius, half_thick_angle, involute_facets)

involute_gear_tooth ( pitch_radius, root_radius, base_radius, outer_radius, half_thick_angle, involute_facets)

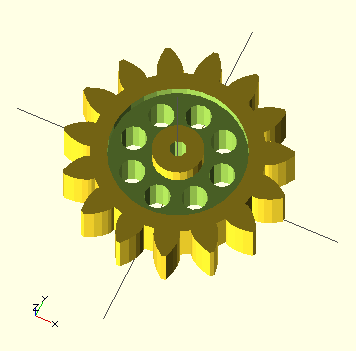

example

gear (circular_pitch=700,
gear_thickness = 12,
rim_thickness = 15,
hub_thickness = 17,
circles=8);

Polygons

polygon(points = [ [x, y], ... ], paths = [ [p1, p2, p3..], ...], convexity = N);


polygon(points=[[0,0],[100,0],[0,100],[10,10],[80,10],[10,80]], paths=[[0,1,2],[3,4,5]]);

• Create your polygons in Inkscape or import svgs into Inkscape and export your shapes with an extension
• Use OpenSCAD Polygon Generator

OpenSCAD Polygon Generator

The Polygon Generator is a visual helper for generating polygons. The application was written by member PieterBos in Action Script 3.0 and is a small air app. The application does not have any undo functionality and you can only draw on a grid. To use this application, download PolygonHelper.air.

1. Download the PolygonHelper.air application from Thingiverse by clicking here.



   ---

2. Install and open the application.



   ---

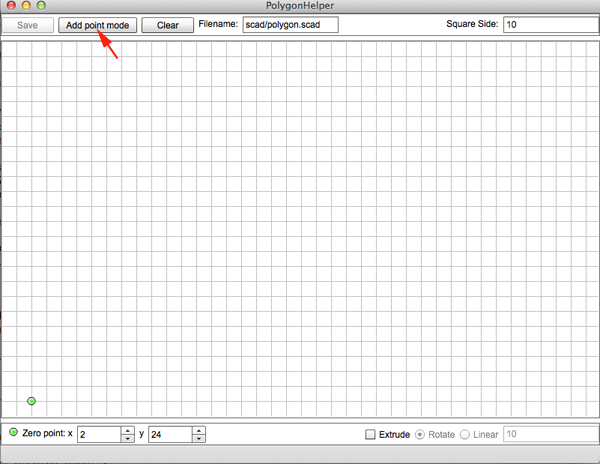

3. Click on the Add Point Mode to begin




   ---

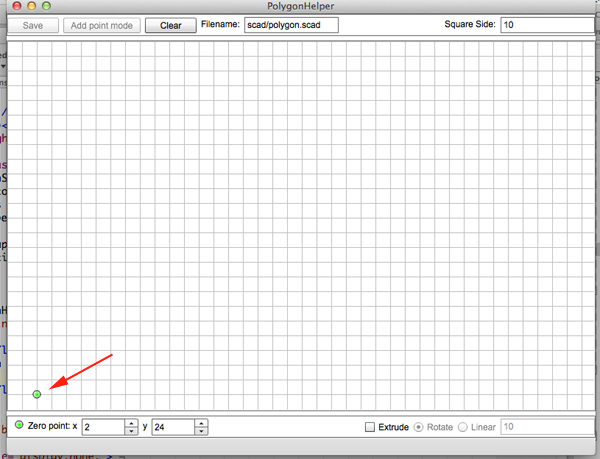

4. Click on the green dot if you want your polygon to begin at the central axis point




   ---

5. Click on the grid to make the next point:




   ---

6. Continue to add nodes. When you want to finish the shape click back on the first point.



   ---

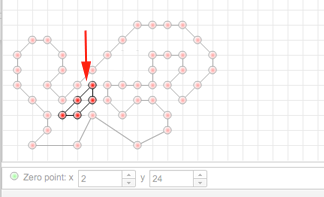

7. You can add holes by clicking on the Add Point Mode and creating another closed shape:




   ---

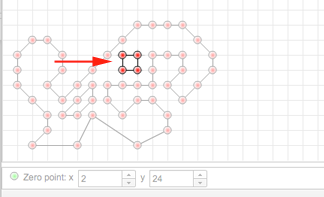

8. You can continue in this manner to create more holes:




   ---

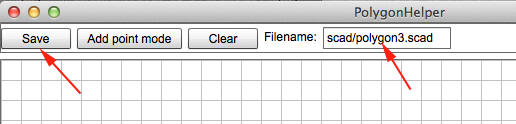

9. When you want to export click on the save button and name it. This file will automatically be saved in the scad directory in your Documents directory




   ---

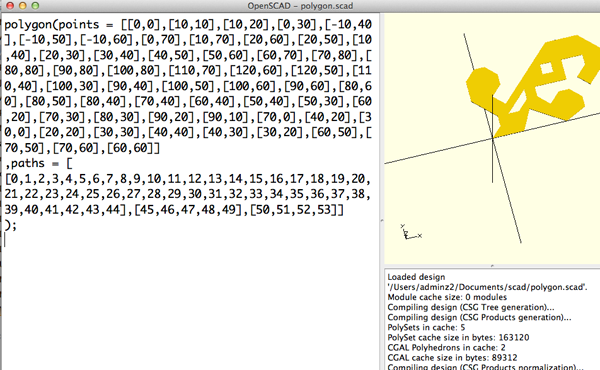

10. Just exporting it will create a 2D polygon in OpenSCAD:




    ---

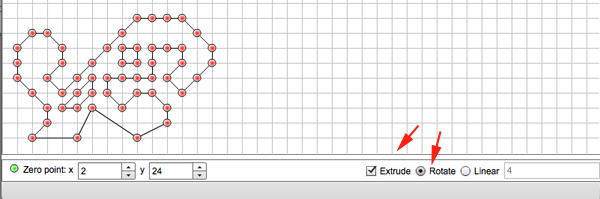

11. You can also save an extruded shape. Click on Extrude and Rotate:




    ---

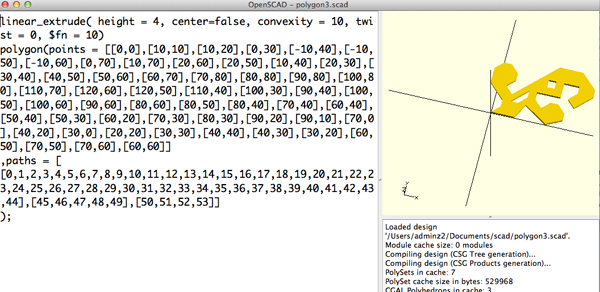

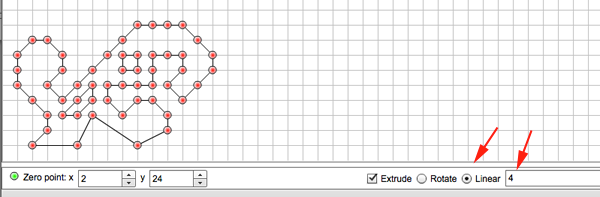

12. Or click on Extrude, Linear and supply a value to extrude by:




    ---

Importing STL files

1. Open a new document in OpenSCAD



   ---

2. The import_stl() function takes two parameters:
   • a file name
   • convexity, which specifies the maximum number of front sides a ray intersecting the object might penetrate. This parameter has no effect on the polyhedron rendering, but is necessary in the OpenCSG preview.

   stl_import("example.stl",convexity=5);





   ---
