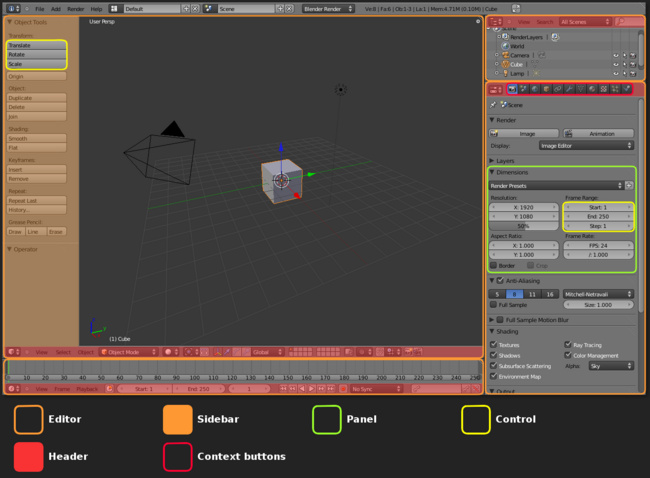

Blender Introduction

Blender's Extra Objects

While you could create an SVG file of a gear, Blender provides a very simple way to create gears and a few extra objects.

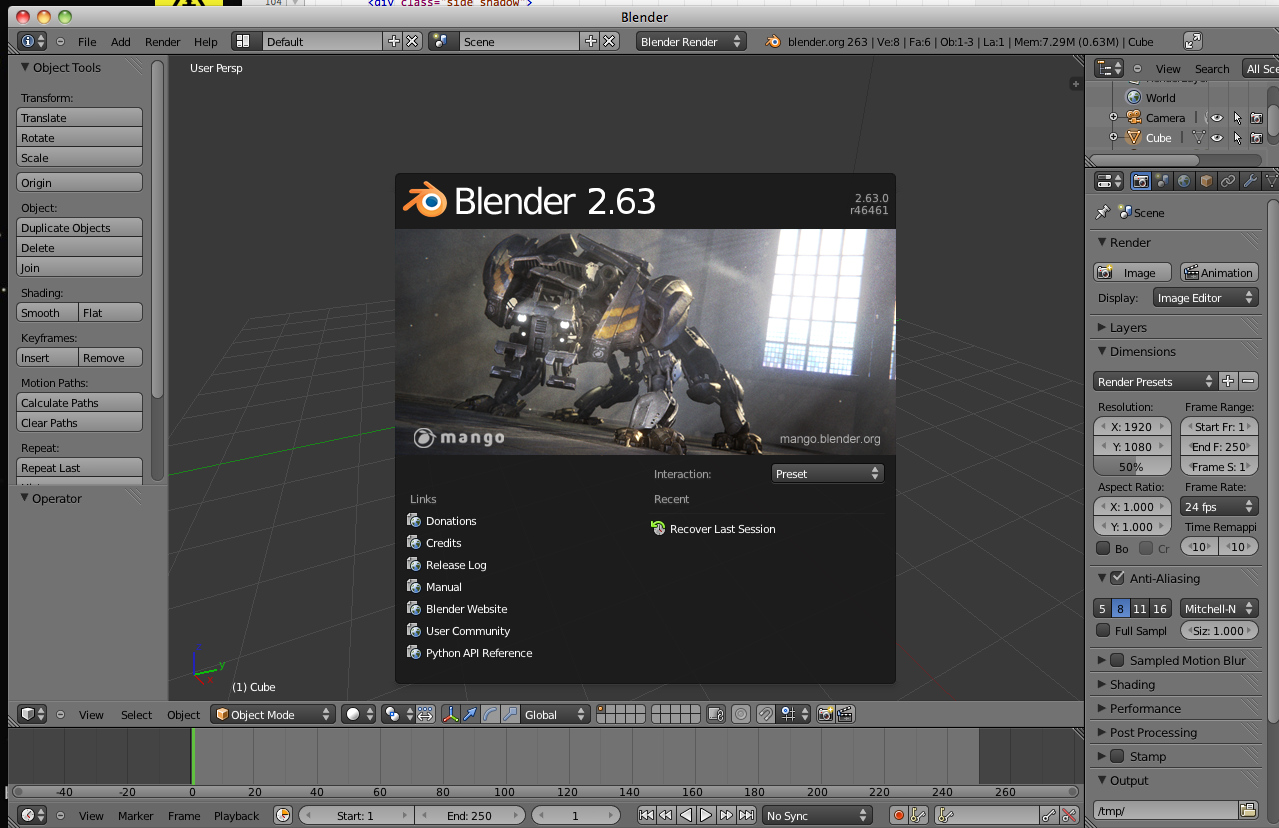

Open Blender
If you have not enabled Extra Objects navigate to File>User Preferences or type (CMD+,).

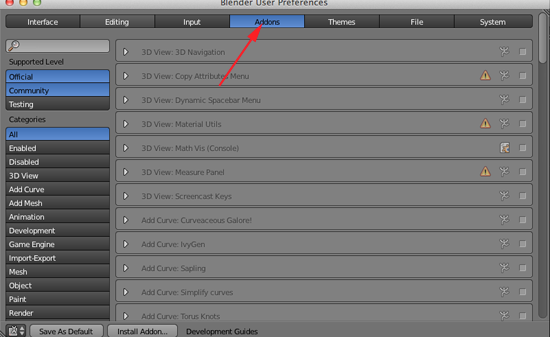

Click on Addons

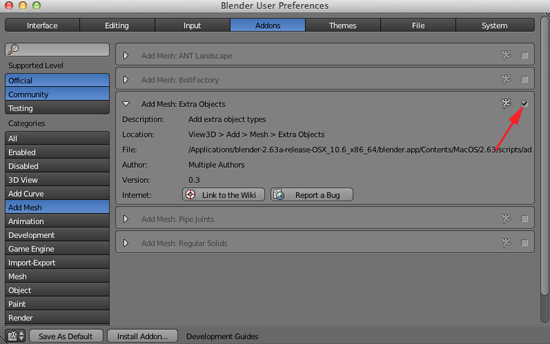

Click on Add Mesh and toggle open Extra Objects and enable this Addon

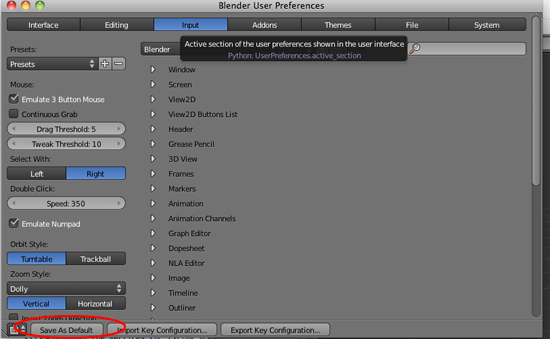

Click on Save As Default

Gears

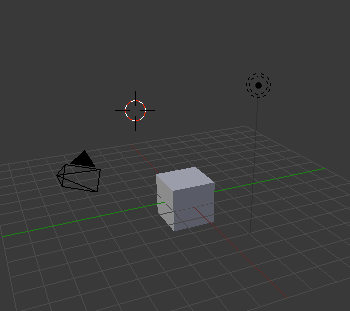

If the cube is not selected (if there is not an orange line around it), RIGHT click on it to select it:
Press X and click on Delete to delete the cube.
Set your Viewport to Top Ortho (7,5)

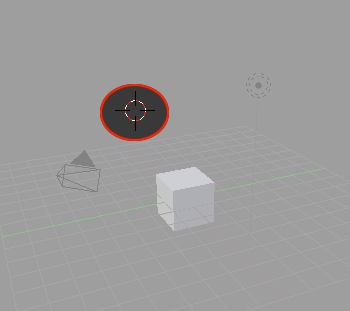

Place your 3D cursor in the center.

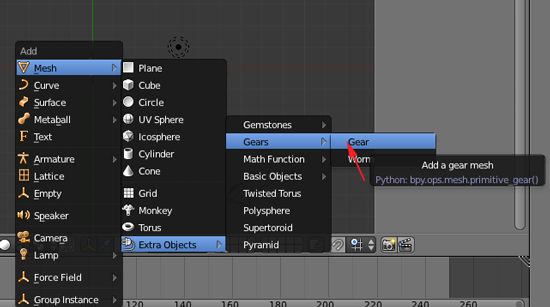

Press SHIFT+A. Select Mesh>Extra Objects>Gears>Gear

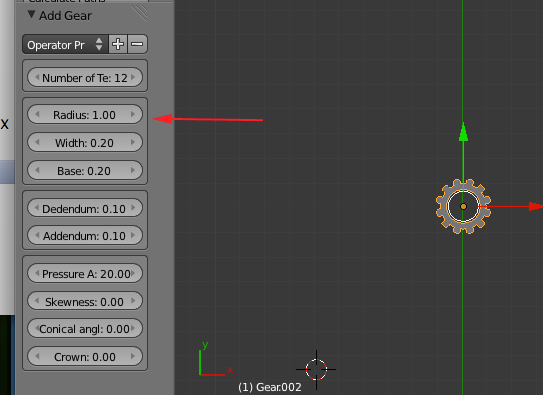

Adjust the gear parameters in the tool shelf. You will have to make all the changes to the parameters before you make any transformations.

You use gears to slow down a motor and give it more strength.

Torque refers to rotating strength. If the input gear is smaller, your larger gear will move slower, but the torque will be stronger.

As the speed increases, the strength of the torque decreases (large input).
As speed decreases, strength increases (small input).

You also use gears when your mechanism that is controlled by a motor is separated from the motor by geometry. The gears allow you to transfer the rotation of the motor across this geometry. When designing, you will often work from mechanism back to motor.

You could use gears with the same number of teeth to move the rotation.

Gears are comparable to continuously applied levers; as one tooth is engaging, another is disengaging. The amount of teeth on each gear wheel affects the action on the gear wheel it engages or meshes with. The gear wheel being turned is called the input gear and the one it drives is called the output gear. Gears with unequal numbers of teeth alter the speed between the input and output. This is referred to as the gear ratio.

Gears also alter the direction of rotation. In the above example gear wheel A is rotating clockwise, but as it turns, gear wheel B is moved anti-clockwise.

If you know any two things about a gear—outer diameter and number of teeth—you can use some simple equations to find everything else you need to know, including the correct center distance between them.

Number of Teeth (N): How many teeth are there in the gear
Pitch Diameter (D):: The circle on which two gears effectively mesh, about halfway through the tooth. The pitch diameters of two gears will be tangent when the centers are spaced correctly.
Diametral Pitch (P):: The number of teeth per inch of the circumference of the pitch diameter. Think of it as the density of teeth—the higher the number, the smaller and more closely spaced the teeth on a gear. Common diametral pitches for hobby-size projects are 24, 32, and 48. The diametral pitch of all meshing gears must be the same.
Circular Pitch (p) = pi / P:: The length of the arc between the center of one tooth and the center of a tooth next to it. This is just pi (ï€ = 3.14) divided by the diametral pitch (P). Although rarely used to identify off the shelf gears, you may need this parameter when modeling gears in 2D and 3D software like we're doing here. As with diametral pitch, the circular pitch of all meshing gears must be the same.
Outside Diameter (Do):: The biggest circle that touches the edges of the gear teeth. You can measure this using a caliper like Sparkfun.com's # TOL-00067.

Note: Gears with an even number of teeth are easiest to measure, since each tooth has another tooth directly across the gear. On a gear with an odd number of teeth, if you draw a line from the center of one tooth straight through the center across the gear, the line will fall between two teeth. So, just be careful using outside diameter in your calculations if you estimated it from a gear with an odd number of teeth.
Center Distance (C):: Half the pitch diameter of the first gear plus half the pitch diameter of the second gear will equal the correct center distance. This spacing is critical for creating smooth running gears.
Pressure Angle:: The angle between the line of action (how the contact point between gear teeth travels as they rotate) and the line tangent to the pitch circle. Standard pressure angles are, for some reason, 14.5&Acir;° and 20Â°. A pressure angle of 20Â° is better for small gears, but it doesn't make much difference. It's not important to understand this parameter, just to know that the pressure angle of all meshing gears must be the same.
Addendum:: how much the tooth protudes beyond the pitch radius
Dedendum:: how deep goes the tooth before any fillet takes place
Pressure angle:: The angle between the radial direction and the tangent to the tooth at the pitch circle. 20 is a good value.

Some Rules

The value of the base circle is based on pressure angle.

The smaller the pressure angle, the smaller the base radius
The addendum must be less than the dedendum
The dedendum must be more than the difference between the pitch and the base radius.

All of these gear parameters relate to each other with simple equations.

To Get	You Have	Equation
Diametrical Pitch(P) Number of teeth per unit length	Circular Pitch(p) Number of Teeth(N) & Pitch Diameter(D) Number of Teeth(N) & Outside Diameter (D_o)	P=π/p P=N/D P=(N+2)/D_o(approx)
Circular Pitch(p) Length of the arc from one tooth to the next	Diametrical Pitch (P)	p=π/P
Pitch Diameter(D)	Number of Teeth(N) & Diametrical Pitch(P) Outside Diameter (D_o) &Diametrical Pitch(P)	D=N/P D=D_o-2/P
Number of Teeth(N)	Diametrical Pitch(P) & Pitch Diameter(D)	N=P*D
Center Distance(CD)	Pitch Diameter(D) Number of Teeth(N) & Diametrical Pitch(P)	CD=(D₁+D₂)/2CD=(N₁+N₂)/2P

Stepping down has the advantage of producing more power although at a slower rate.

This Stepping up produces a much faster output speed, but mechanically delivers less power

CALCULATING RATIOS

If the input gear (A) has 10 teeth and the output gear (B) 30 teeth, then the ratio is termed 3 to 1 and is written down as 3:1

Ratio = No. of teeth on the output gear B (30)>
        No. of teeth on the input gear A (10)
		= 3/1 and is written down as 3:1

Simply divide the amount of teeth from the output by the input gear to work out the ratio. In the above example, for every complete revolution of the input gear the output turns 1/3 of the way round. In other words it takes three turns of A to rotate B once. This means you are slowing down the action and is referred to in engineering terms as Stepping Down. If B were the input gear and A the output gear, then the opposite happens and we Step Up. Then with one turn of the input gear the output gear would turn three revolutions, giving a ratio of 1:3.

parallel gears work in a similar way to the In line ones but are much easier to construct. The larger one uses popsicle sticks instead of dowel and is referred to as a Paddle gear.

Designing

When designing and making gear wheels you need to apply a little common sense. For example, the load or pressure put on the gears in automata are usually very small compared to that of a car gear box. This allows you to get away with things that you couldn't in other machines. However, you still have to follow some simple engineering guidelines. You will need to identify what you want to get from the gears. Try running through this simple check list;

Do you want the gears to step up or step down? (speed up or slow down the performance).
Do you want the gears to run parallel, or at an angle of 90° to change the direction of the drive?
What size do you need to make them? (small space means making smaller gears and this can get tricky).

You need to set your parameters before doing any transforms or using modifiers. Once you have your gears, scale them up in Blender

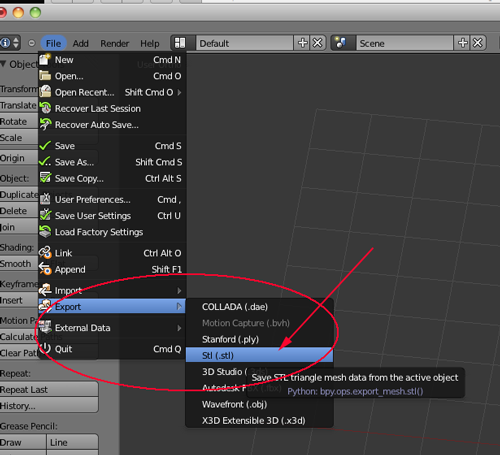

RIGHT+click on the gear or gears and select File>Export>STL(.stl) Save the stl and open in MakerWare or ReplicatorG.

Gem Stones

Create a new Bender document.
If the cube is not selected (if there is not an orange line around it), RIGHT click on it to select it:
Press X and click on Delete to delete the cube.
Set your Viewport to Top Ortho (7,5)
Place your 3D cursor in the center.

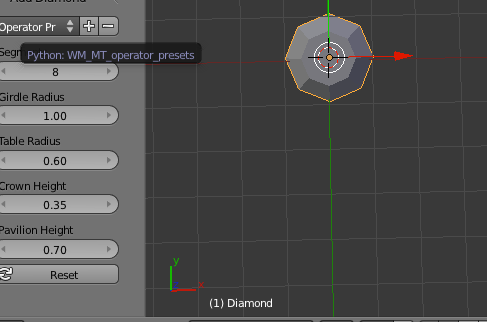

Press SHIFT+A. Select Mesh>Extra Objects>Gemstones>Diamond.

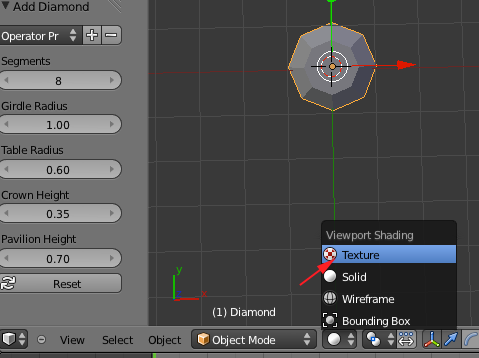

You will have to adjust the parameters before making any transformations. Adjust the gemstone parameters in the tool shelf

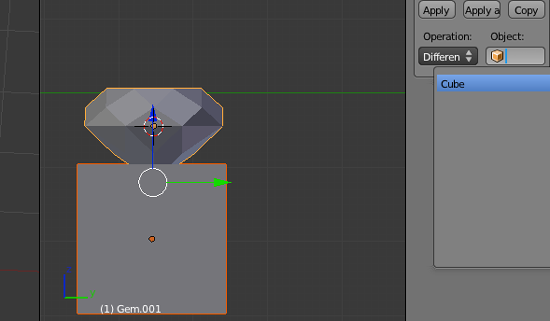

If you want to attach the gemstone to a ring, you might want to take a cube and boolean difference the pointed part of the gemstone.
If you add a a gem and modify the parameters, you might create problems with your mesh. To see the issues, switch from Solid to Texture viewport shading:

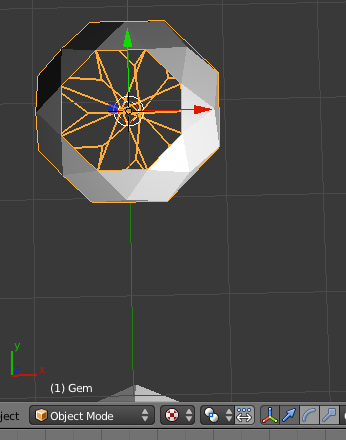

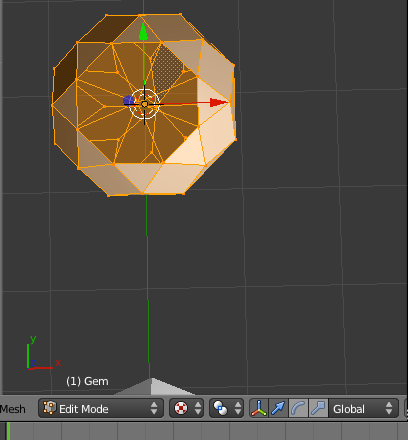

If you see a problem like this:

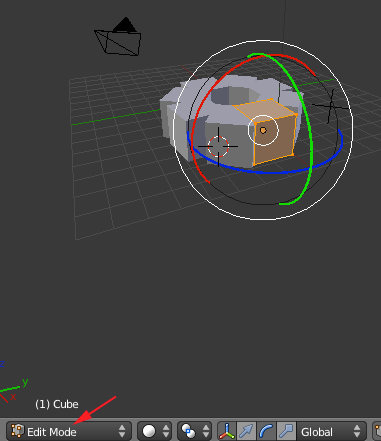

Toggle into Edit Mode

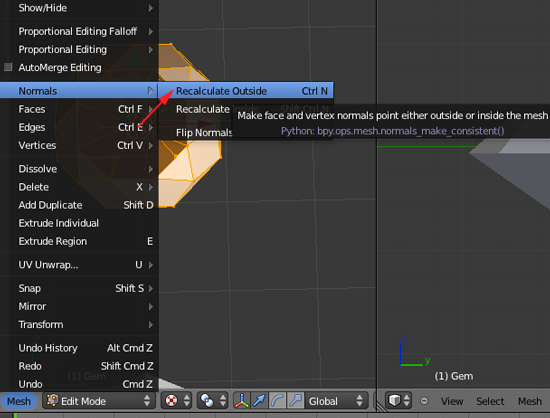

Press CTRL+N or navigate to the Mesh>Normals>Recalculate Outside
RIGHT+click on the gem and select File>Export>STL(.stl) Save the stl and open in MakerWare or ReplicatorG.

Importing and Extruding .svg files

Open Blender.
Click on File>Import>Scalable Vector Graphic (.svg) and navigate to your .svg file and click on Import .SVG button in the top right corner.
RIGHT+click on the imported file so that it is selected.

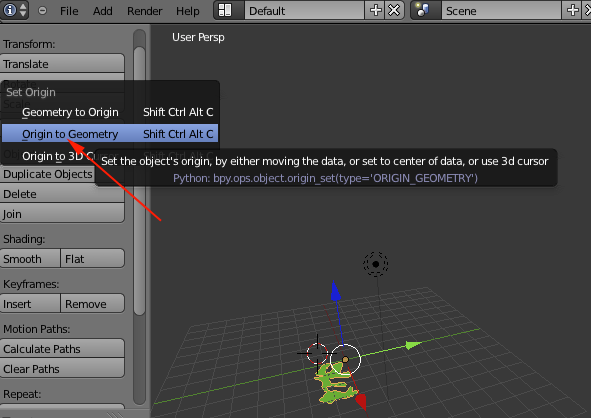

In the left panel select Origin to Geometry

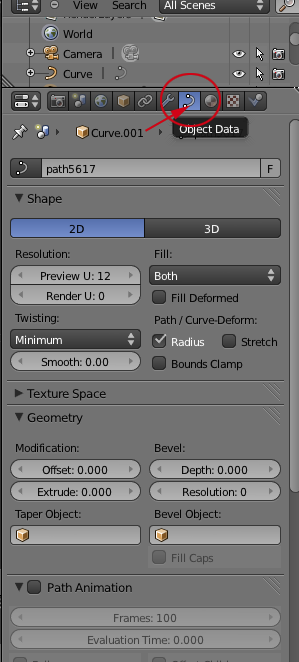

Click on Object Data in the Right Panel:
This will open the Object Data panel:

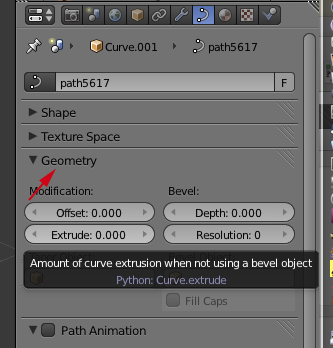

If it isn't open, toggle open the Geometry panel

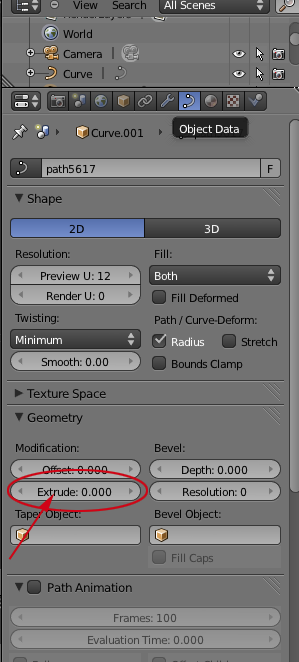

CTRL+click on Extrude

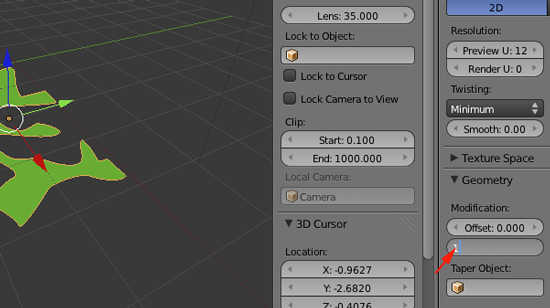

Change the extrude value to 1

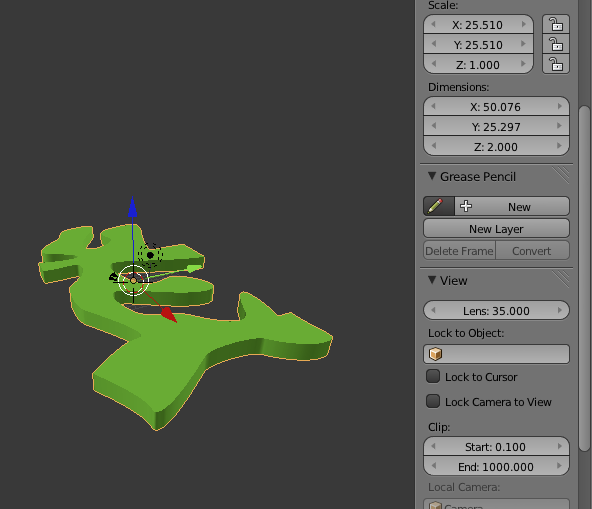

In the Viewport press N. And resize your shape by pressing S and scaling up so that your width matches your your width from the original .svg file:
Set the z to however high you want your tile.

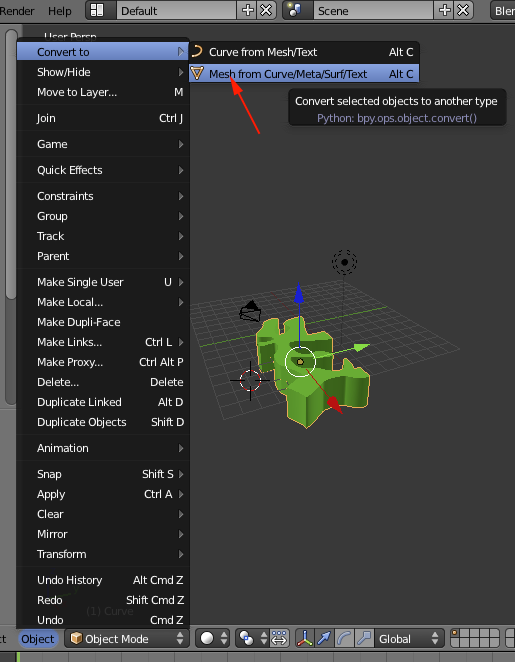

Convert the shape to a mesh by selecting Object>Convert To>Mesh from Curve
Select the object if it is not selected and select File>Export>STL(.stl) Save the stl and open in MakerWare.

Spin Tool and Blender

Blender's Spin tool works by making copies of the selected vertices in a radial array around an axis indicated by the 3d cursor. Each copy of vertices are connected to previous vertices that corresponds to it with necessary geometry (edges and planes).

Using a Profile

Open Blender
If the cube is not selected (if there is not an orange line around it), RIGHT click on it to select it
Press X and click on Delete

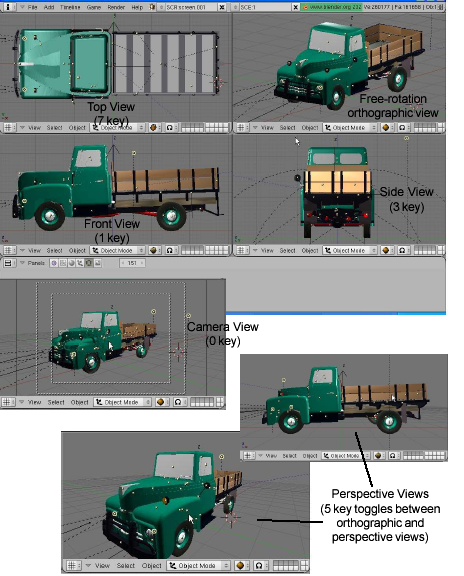

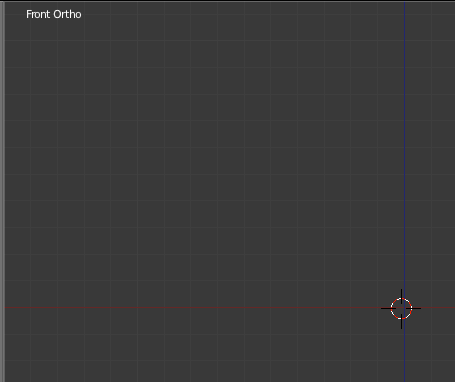

Set your viewport to Front View by pressing the number 1 on your keyboard.
Press Num 5 to switch out of perpective mode and into orthogonal mode.
Align the 3D cursor to the intersection of red and blue lines:

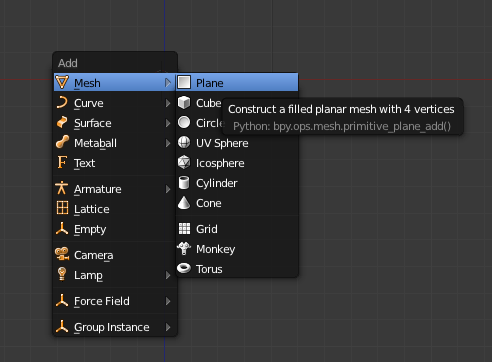

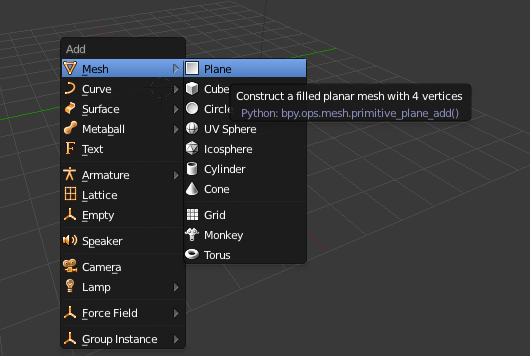

Add a mesh that is a plane by pressing SHIFT+A.
Press Tab to switch from Object Mode to Edit Mode.

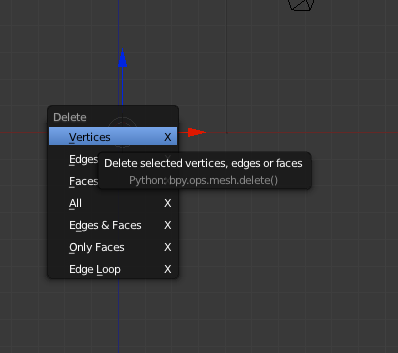

Delete all the vertices by pressing X:
CTRL+LMB to add a new vertex point at the depth of the 3D cursor

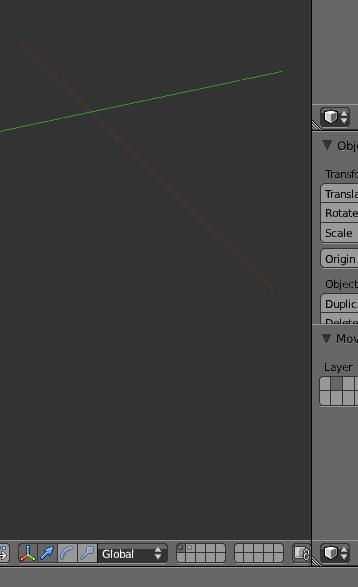

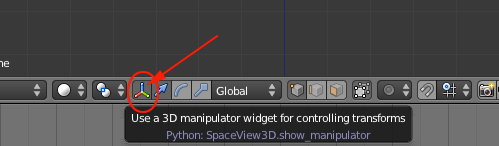

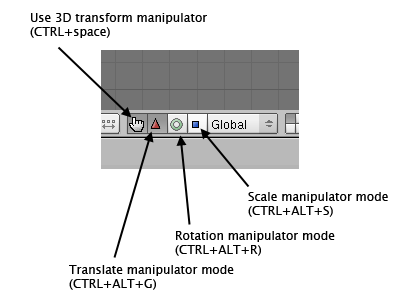

If the axes bother you

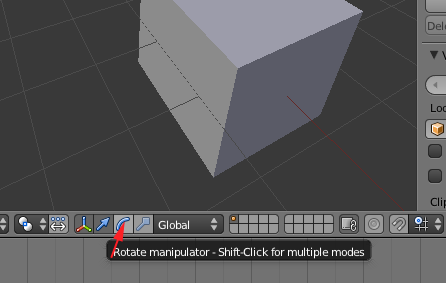

toggle off the 3D manipulator

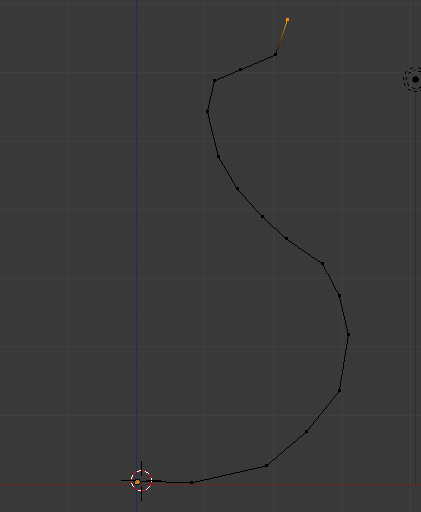

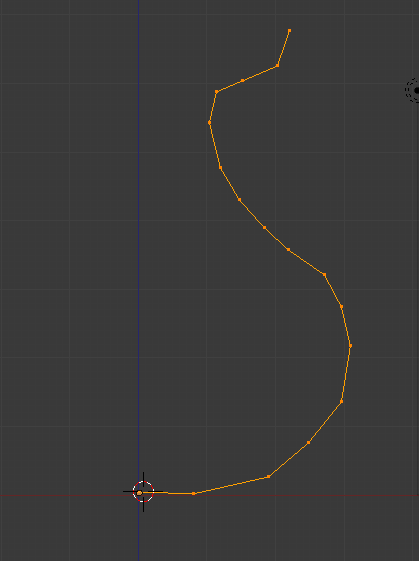

Continue to use CTRL+LMB to drag out a profile of a vase:

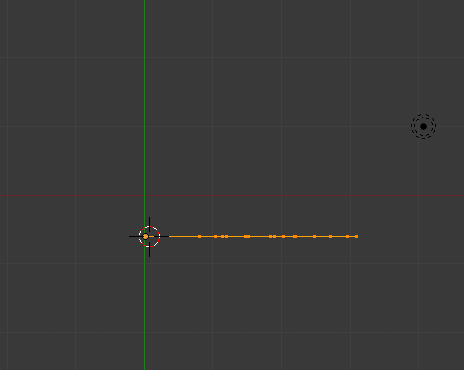

Select all the points by press A to deselt all and A again to select all:
Go to Top View (7)

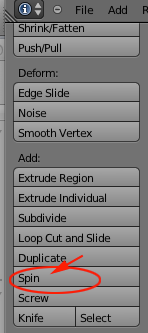

Select spin:

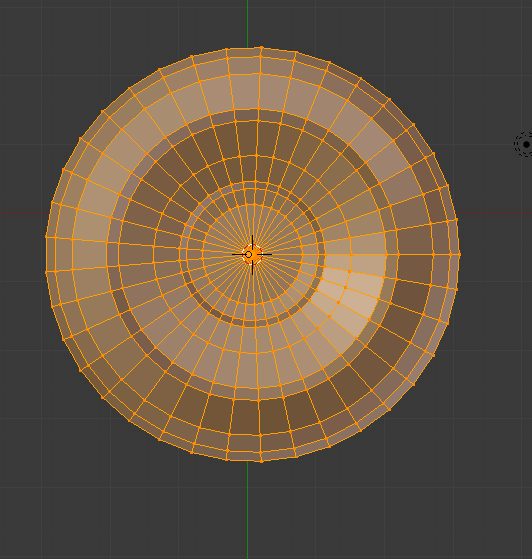

Open up the Spin Menu and adjust rotation to 360 and segments to some value 16 or greater

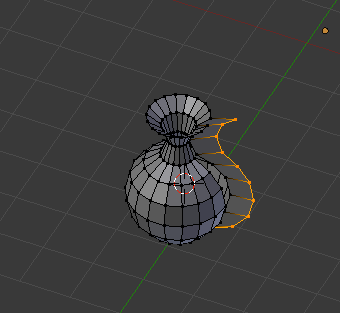

You will have an extra set of vertices

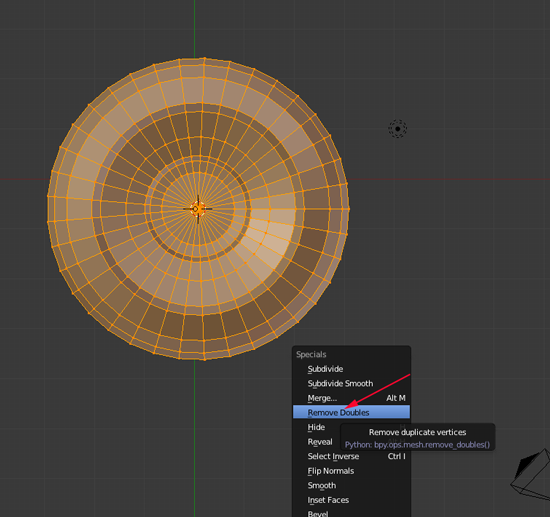

Select All by pressing A and then press W to remove doubles
Press A again to deselect.

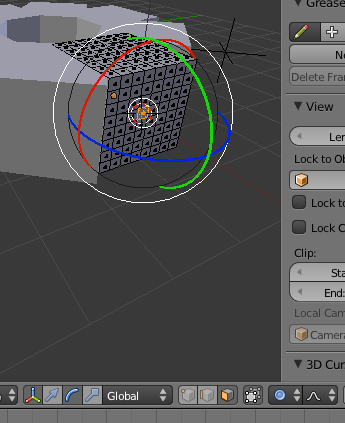

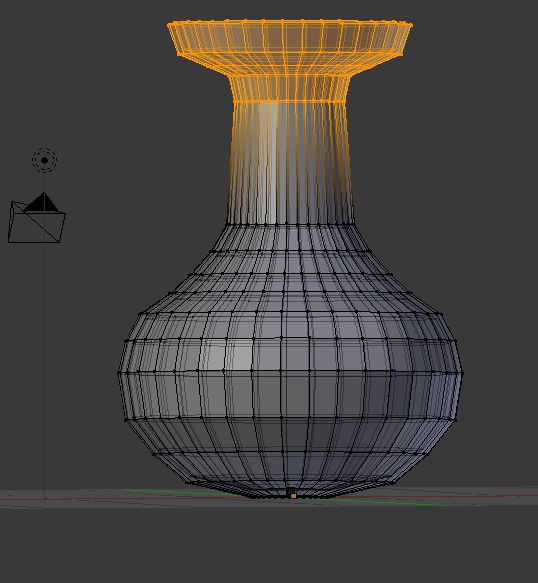

Edit as you see fit. To grab vertices, toggle the limit
Press B for boundary select and drag a box around what you want to edit, press G to grab and move your mouse in a direction

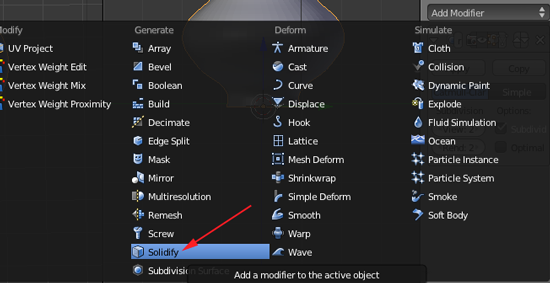

Add a Modifier by clicking on the Wrench on the right hand side and selecting Add Modifier:

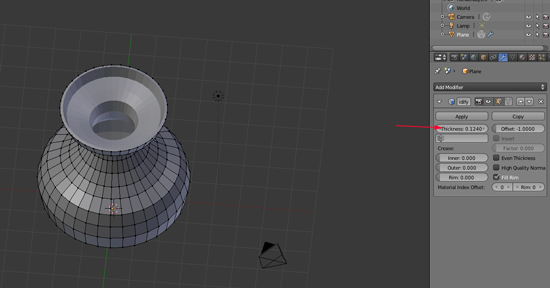

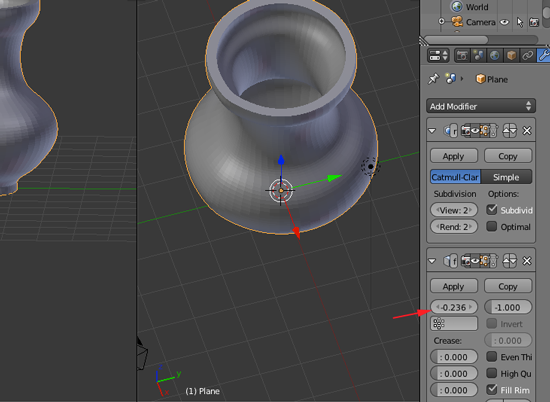

Select the solidify modifier and scrub to add thickness

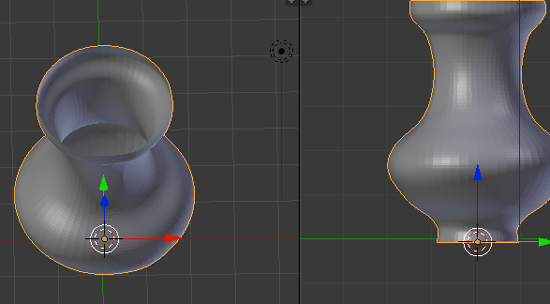

Press Tab to toggle back to Object mode.
Click Apply
Add another Modifier. This time add Multiresolution

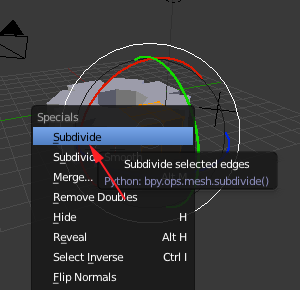

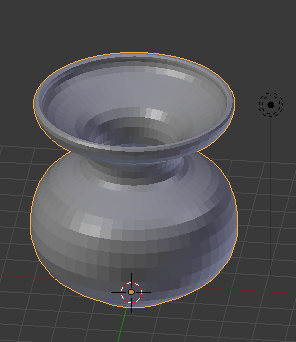

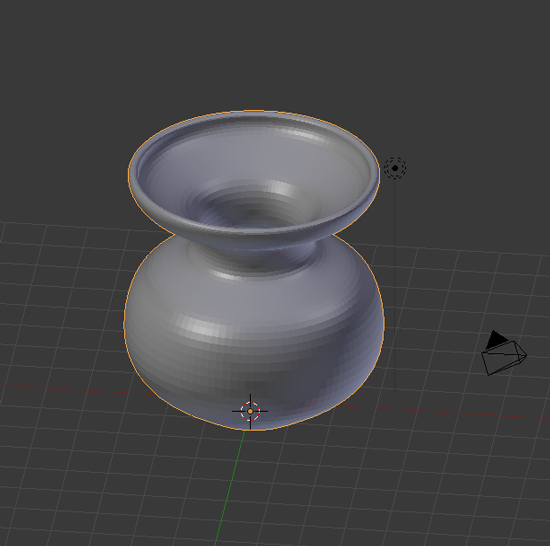

Click on subdivide a few times:
Click Apply
Select the model
To export the model as an STL, select the model then choose File>Export>STL(stl).
Give the file a name with the .stl extension and save.
Slice and print. You will need to scale the model up in MakerWare in order to get a decent vase.

Using BSurfaces with Blender

BSurfaces is a is a Blender add-on modeling tool that combines freehand strokes, beziér curves and loose edges to generate polygonal surfaces.

If you don't have Blender installed, download it from blender.org and install it.
Download BSurfaces_v15_for_blender_263.zip
Open Blender

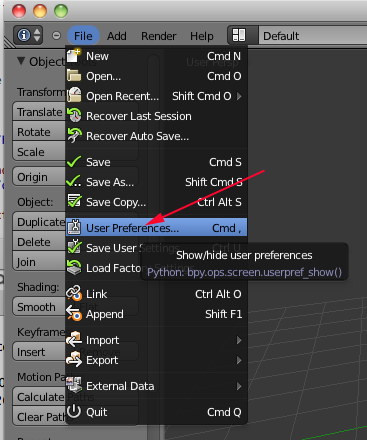

Open User Preferences
Navigate to Addons

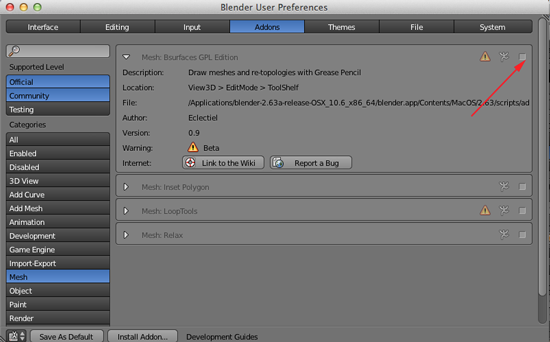

If you have BSurfaces GPL Edition vo.9 active, deactivate it

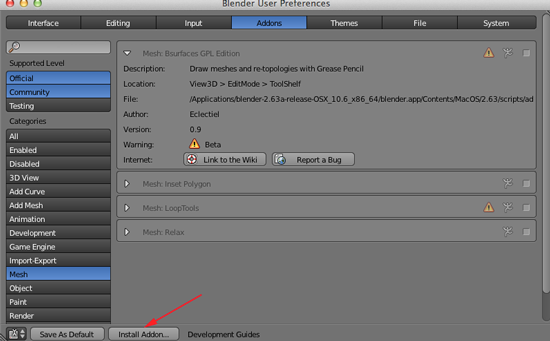

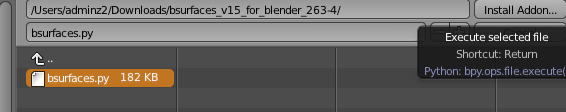

Click Install Addon... to install the BSurfaces.py

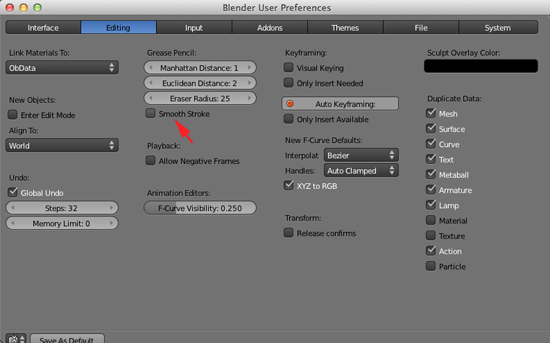

Navigate to Editing
Disable the option Smooth strokes if it is enabled.
Click on Save As Default
Create a New Document (File>New Document)
To find the BSurfaces panel, select a mesh object, go to Edit Mode, and navigate to the bottom of the 3D view toolshelf:
Press X and click on Delete to delete the default cube
Press SHIFT+A to add a mesh plane
Click on Object Modifiers

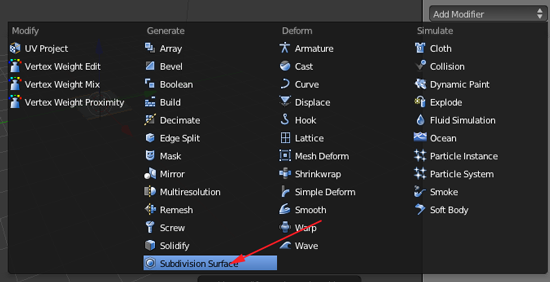

Click on Add Modifier and add a Subdivision modifier

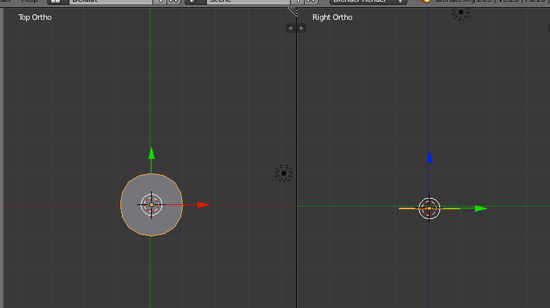

Set View to 2:
- Add a second viewport by dragging the upper right corner over to the left.
- Toggle off the Toolshelf by pressing T.
- Set the left side to Top Ortho (7,5)
- Set the right viewport to Right Ortho (3,5)

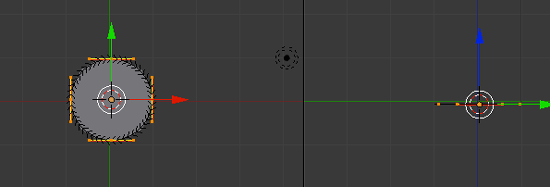

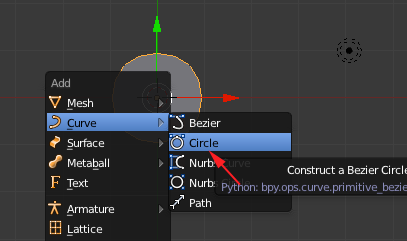

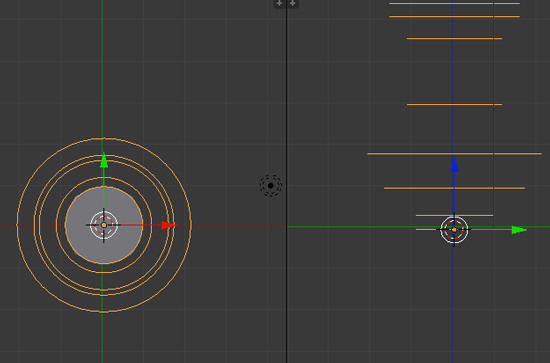

In Top Ortho view add a Curve>Beziér Circle by pressing SHIFT+A

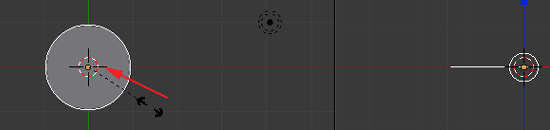

Your circle will be slightly larger than your plane. Press S and scale the circle to fit the plane
Press Tab to go to Edit Mode

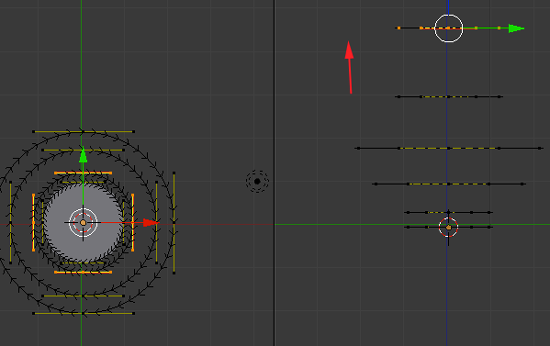

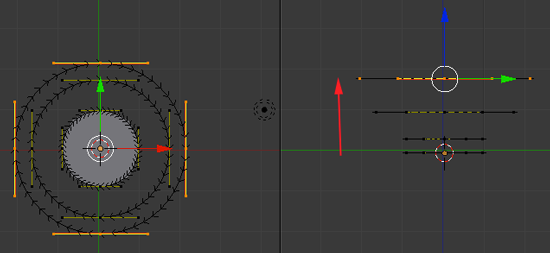

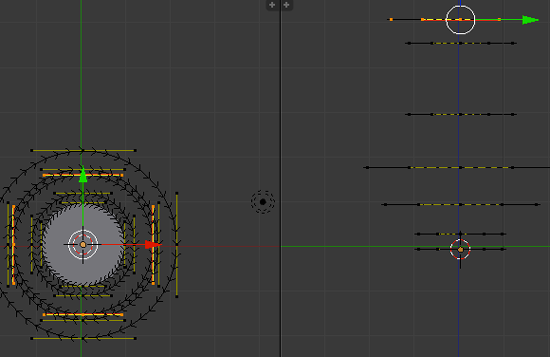

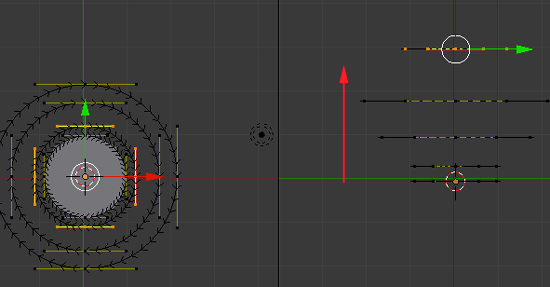

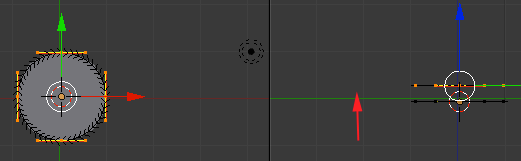

Press SHIFT+D to duplicate the curve. Then press G and Z to move the duplicated curve up. Then press S to scale the curve
Continue to duplicate, move and scale as desired:
Press Tab to go to Object Mode
You want to add the plane to the curve. RIGHT+click on the plane

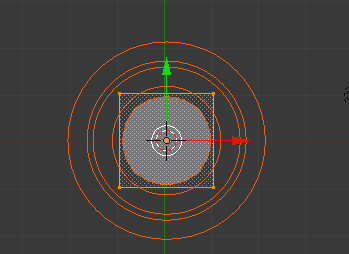

Press Tab to go to Edit Mode

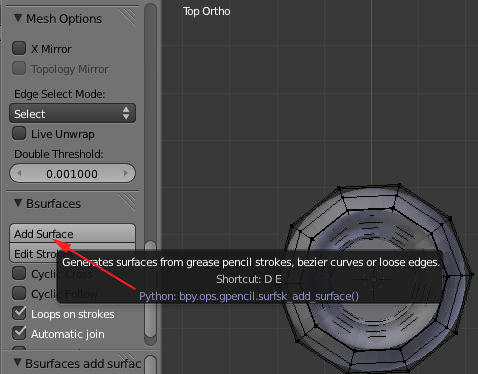

Navigate to the Bsurface panel and select Add Surface

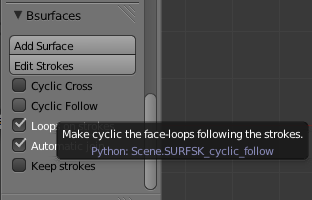

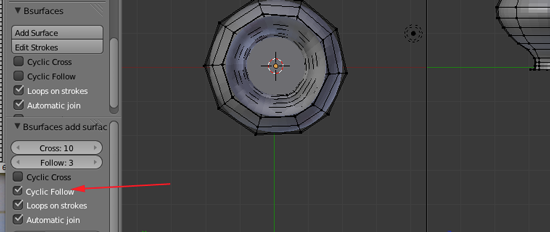

In the new panel that appears enable Cyclic Follow

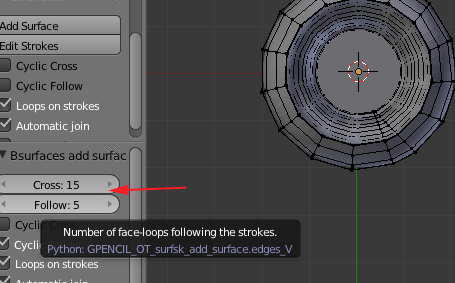

In the new panel that appears adjust the Cross and the Follow values
Press Tab to go to Object Mode
Click on Object Modifiers
Click on Add Modifier and add a Solidify modifier
Adjust the parameters of the modifier
To export the model as an STL, select the model then choose File>Export>STL(stl).
Give the file a name with the .stl extension and save.
Slice and print. You will need to scale the model up in ReplicatorG or MakerWare in order to get a decent vase.

Using the Boolean Modifier with Blender

Constructive solid geometry (CSG) is a technique used in solid modeling. Using this typeof modeling allows you to create a complex objects by using Boolean operators to combine objects. Often CSG presents a model or surface that appears complex, but is actually little more than cleverly combined or decombined objects.

The simplest solid objects used when modeling are called primitives—cubes, cylinders, pyramids, spheres, cones. These are Blender's primitives:

When using Constructive solid geometry , an object is constructed from primitives by means of combining operations. These operations are typically Boolean operations: union, intersection and difference.

Constructive solid geometry is used in cases where simple geometric objects are desired, or where mathematical accuracy is important.

Boolean Intersection

You should have a document with the default Cube. If you do not have the cube, you can select File>Load Factory Settings. If you do reload the factory sttings, you'll have to reset your user preferences.
Add a UV Sphere by pressing SHIFT+A
In the left panel adjust the Sphere properties

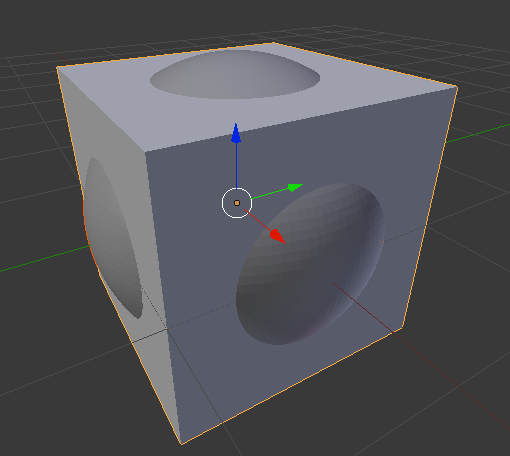

While the sphere is selected, RIGHT+click on the Cube.
Select Object Data Modifier
Select Add Modifier and choose Boolean

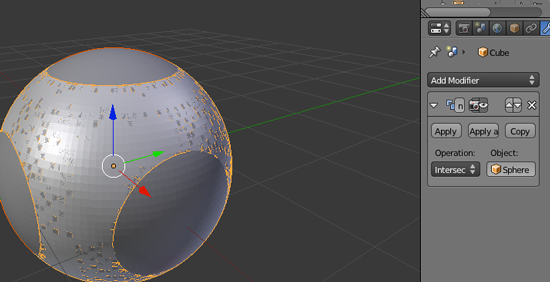

Select Intersection. Click on the Object icon and select Sphere
Depending on the complexity of your mesh, you may have to wait for Blender to process the request

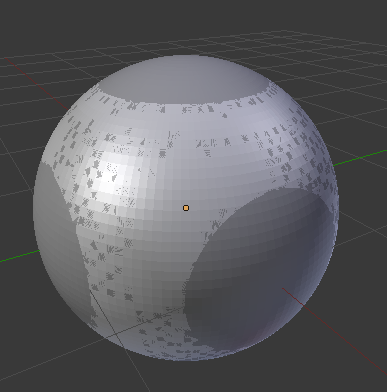

Click Apply

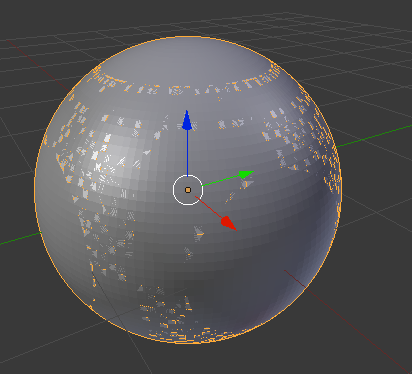

Select the Sphere

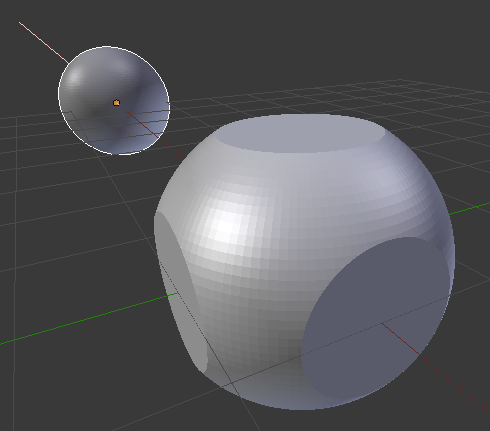

Move the sphere by pressing G and X and dragging the Sphere along the X axis

Boolean Union

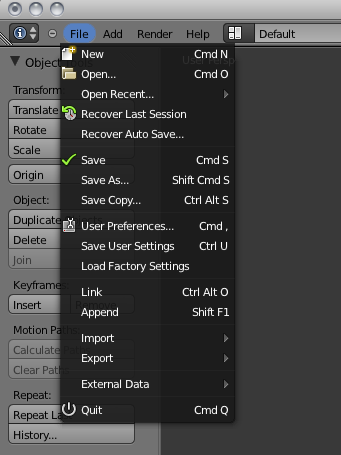

Select File>New. You should have a new document with the default Cube. If you do not have the cube, you can select File>Load Factory Settings. If you do reload the factory sttings, you'll have to reset your user preferences.
Add a UV Sphere by pressing SHIFT+A
In the left panel adjust the Sphere properties
While the sphere is selected, RIGHT+click on the Cube.
Select Object Data Modifier
Select Add Modifier and choose Boolean

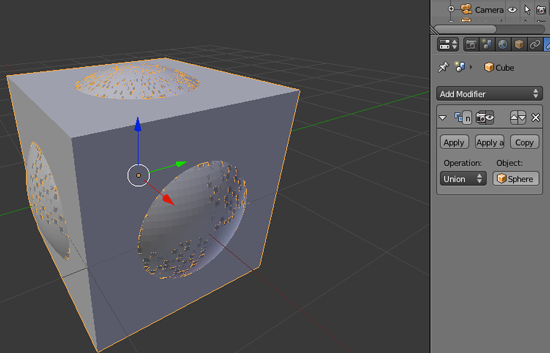

Select Union. Click on the Object icon and select Sphere
Depending on the complexity of your mesh, you may have to wait for Blender to process the request
Press Apply

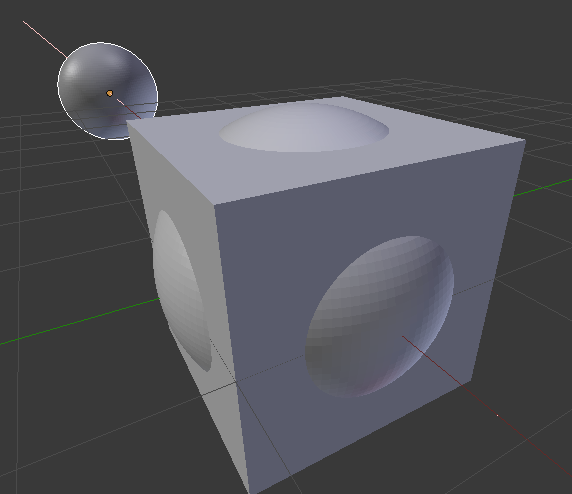

Select the Sphere and move it by pressing G and X and dragging the Sphere along the X axis

Boolean Difference

Select File>New. You should have a new document with the default Cube. If you do not have the cube, you can select File>Load Factory Settings. If you do reload the factory sttings, you'll have to reset your user preferences.
Add a UV Sphere by pressing SHIFT+A
In the left panel adjust the Sphere properties
While the sphere is selected, RIGHT+click on the Cube.
Select Object Data Modifier
Select Add Modifier and choose Boolean
Select Difference. Click on the Object icon and select Sphere
Depending on the complexity of your mesh, you may have to wait for Blender to process the request

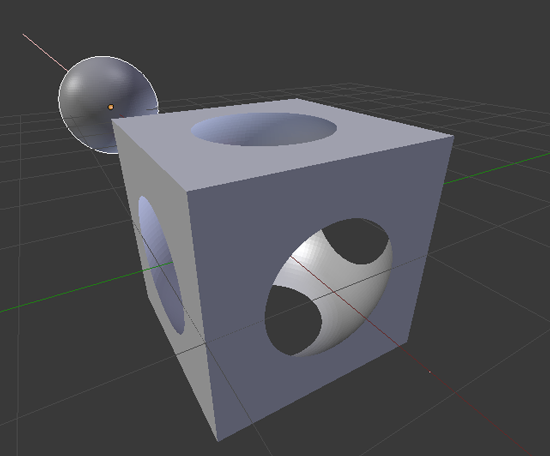

Press Apply. Select the Sphere and move it by pressing G and X and dragging the Sphere along the X axis
I tend to use difference a lot. Not only do I use it to create holes, but I often use it to slice off sections of a mesh. This comes in handy when the bottom of a mesh is uneven and cannot lie flat on the build plate.

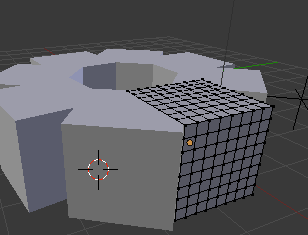

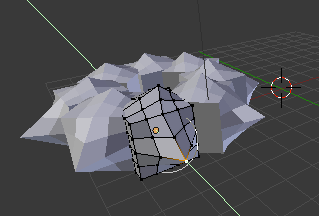

Here the cube was used to slice off the bottom of a mesh and then it was moved down along the Z axis

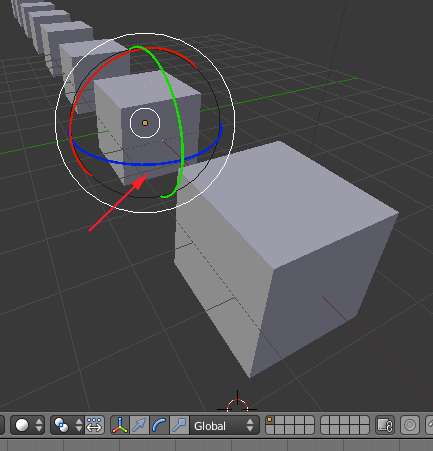

Using the Array Modifier with Blender

The Array modifier creates an array of copies of the base object, with each copy being offset from the previous one in a number of possible ways.

This modifier can be useful for creating complex repetitive shapes.

Multiple array modifiers may be active for an object at the same time.

Open Blender
If the cube is not selected (if there is not an orange line around it), RIGHT click on it to select it:

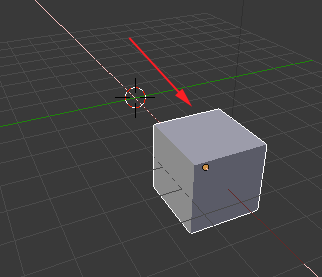

Move the cube along the x axis by pressing G and X and moving your cursor
Make sure the 3D cursor is positioned in the center

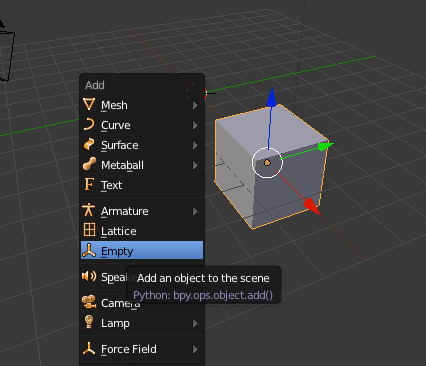

Add an Empty object by pressing SHIFT+A

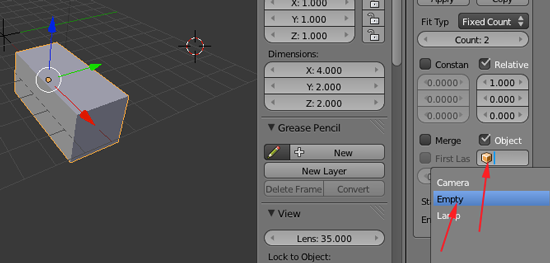

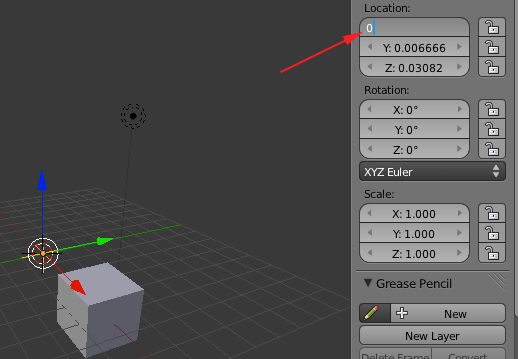

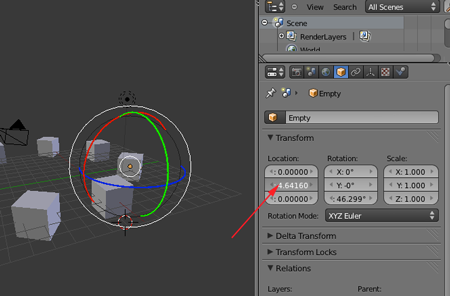

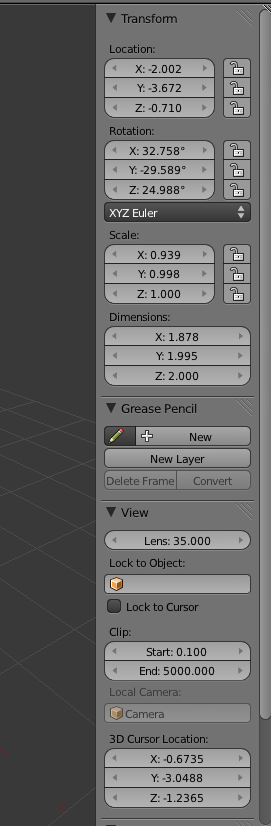

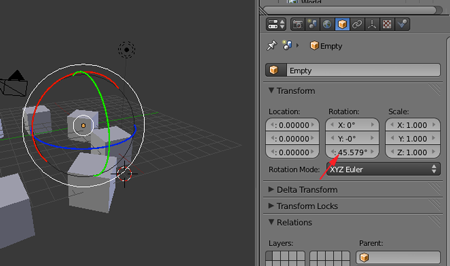

Press N to open the right panel and make adjust the location so that the Empty is in the center
RIGHT+click on the cube to select it
Click on Object Modifier

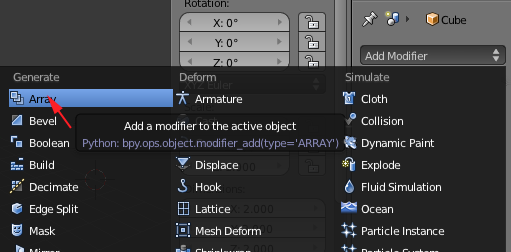

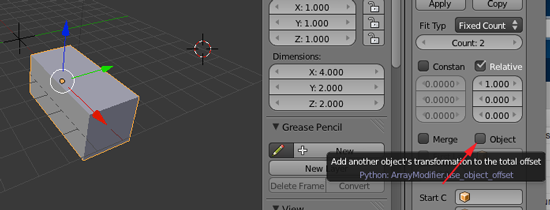

Click on Add Modifier and select Array

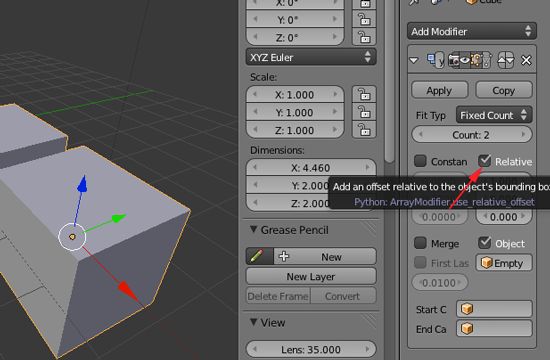

You can also use this modifier to create a matrix of your mesh which can then be printed.
Click on Object
Click on the cube icon and select Empty
Deselect Relative
Change count to 8

The original object used as a start is placed at the start of the array, as if it were in position -1, an array step before the first array copy.
Select Empty in the Scene panel
Click on the Rotate manipulator
Click and drag on the blue line to rotate the cubes around the Empty
You can adjust the rotation and the location to move the cubes.
You can adjust the Delta location to move the cubes
Select the cube and adjust the Constant Offset
Select Merge and first and Last

If enabled, vertices in each copy will be merged with vertices in the next copy that are within the given distance. If Merge is activated, and the Start cap is near enough of the first copy, they will be merged.
From Object Mode press Tab to go to Edit Mode
In Edit Mode you can modify the original mesh and the copies will incorporate those changes.

You can subdivide the cube by pressing W and clicking on Subdivide:

You can turn on Proportional editing by pressing O:

You can even add another mesh in Edit Mode:
When your object is complete, toggle back to Object Mode.
Select the object if it is not selected and select File>Export>STL(.stl) Save the stl and open in MakerWare or ReplicatorG.

Using Blender

Blender's interface may seem different from any other program you have used, but in time with some practice, things will make sense:

To maximize a window, place the cursor in the window and press SHIFT+spacebar:

To revert back, press SHIFT and spacebar again.

To toggle the Tool Shelf Panel, press T

To toggle the Properties panel, press N

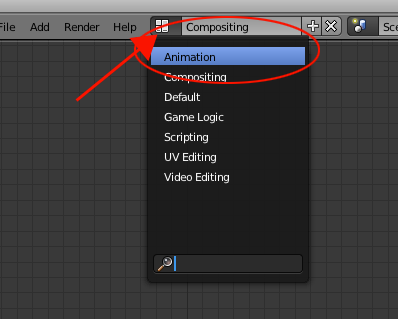

In addition to creating your own layouts, you can call up premade arrangements from a drop-down list at the top of the screen

To undo a step, press CTRL+Z. To redo a step, press Shift+CTRL+Z
OPT+G resets the location to the global center
OPT+R resets the rotation so the object stands pright in global coordinates
OPT+S resets the scale to the object's original size

Resizing Windows

Hold your mouse over the diagonal strips at the top-right or bottom-left corner, the mouse pointer will change to a cross).
Hold down the LMB (meaning Left Mouse Button) and drag towards the center of the window, or up and to the right.
As you increase the size of one window, you decrease the size of the other. Blender does not allow the windows to overlap, as they would in other programs. This is why Blender's interface is known as a non-overlapping window interface.

Layers

Blender works with layers much like other programs where objects can be placed in different layers and displayed as needed. It's a good idea to get comfortable with layers because as your scenes get bigger, turning layers on and off can help with the speed of your work and ability to see things better.
The Layer menu can be found on the header strip of the 3D view. If you can't see it, toggle the Show Pull Down Menu button

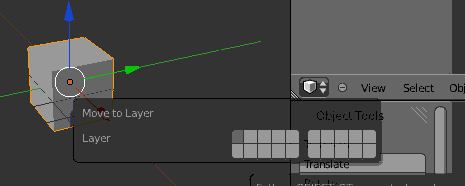

To move things between layers, select the object with the Right Mouse Button (RMB) and type M for move, then click on the appropriate layer button.

You can select a layer through the numpad. 1 for layer 1, 2 for layer 2, OPT+1 for layer 11, etc

You can turn on layers by clicking on the layer menu:

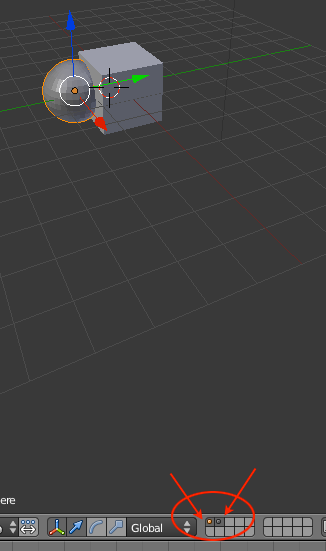

To turn on multiple layers, hold down Shift and click on the buttons.

Default Objects

As you move the view around, you will see that there are four objects in your 3D scene by default:

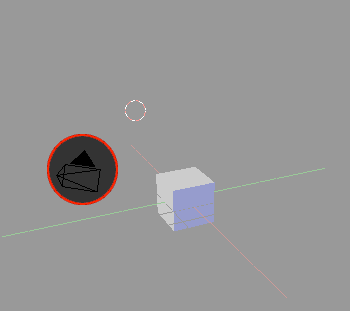

1) The Camera
The camera location and rotation will determine what you will see at render time. To see in your 3D viewport what the camera will see, activate that window by pressing NUM0 (remember the 0KEY is different). To switch out of the camera view, drag the MMB.

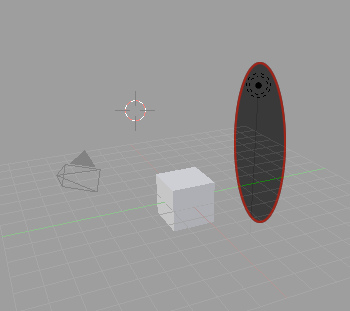

2) A Lamp
A lamp is simply a light source. It will not be rendered, but the light it provides to the scene will be rendered.

3) A Cube
This object will be rendered. The camera should be pointing at the cube so that you will see it at rendertime.

4) The 3D Cursor (works like an 'insertion point')
This is not an object, but a tool for the artist to use to choose where to put new objects in the scene, much like the cursor when you're typing on a word processor (the 'insertion point').

Rotating the view

Place the mouse pointer over the object in the 3D window.
Hold down the MMB and drag the mouse from side to side or up and down.
Hold ALT+LMB

Holding down the MMB is the quickest and easiest way to rotate your view and get a new perspective on things.

Pressing ZKEY will toggle back and forth between Wireframe Mode and Solid Mode. Pressing NUM5 will toggle between Orthographic and Perspective (perspective looks more natural). This does not affect how your final product will appear, only the way you see your scene while you're creating it.

The Numpad

Hold the mouse over your 3D Viewport and press one of the numpad hotkeys:

The object the viewport
orbits around can be
changed to a new object by
first selecting it with the RMB

Using CTRL:

CTRL+NUM7

bottom view

CTRL+NUM8

pan up

NUM 9

CTRL+NUM4

pan left

CTRL+NUM5

perspective

CTRL+NUM6

pan right

CTRL+NUM1

back view

CTRL+NUM2

pan down

CTRL+NUM3

other side view

[NOTE: selecting an object with the RMB will only work if your viewport is set to 'Object Mode'. Press the TAB key to toggle between 'Edit Mode' and 'Object Mode'.]

In Blender there is a big difference between the number keys on your numberpad and the number keys along the top of the keyboard. For example, NUM7 refers to the number 7 on the numberpad, while 7KEY refers to the number 7 that's above the YKEY and UKEY on the standard US keyboard. If you accidentally pressed 1KEY, 3KEY, or 7KEY during this step and it appears that everything disappeared, you have been changing the layer that you are viewing instead, press the 'key(apostrophe key on the top left) to return to viewing all the layers, or press the 1KEY to get back to viewing layer 1 which should have been originally active.

[NOTE: the 1KEY through 0KEY and alt-1KEY through alt-0KEY switch layers. Hold shift to select more than one layer. `KEY selects all 20 layers.]

Panning the View

To pan the view, you have your choice of alternatives:

SHIFT+MMB
SHIFT+ALT+LMB

- and move your mouse.

Alternatively, use the scroll wheel

SHIFT+Scroll	CTRL+Scroll
pan up and down	pan left and right

Panning is an important skill to master.

Note that you must press SHIFT before MMB, otherwise your view will rotate instead of panning.

Also note, that in Windows XP the simultaneous pressing of SHIFT+ALT is used to switch the keyboard layout (for example QWERTY becomes AZERTY and vice versa). So when you find your keyboard layout all messed up, press SHIFT+ALT again, until it fits.

Using SHIFT+MMB instead is recommended.

If you are on a laptop, you made need to go to User Preferences:Input:Emulate Numpad. Save as Default.

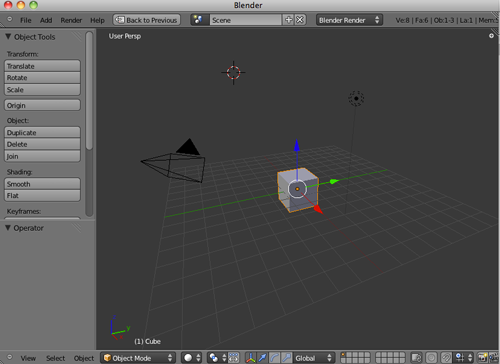

Zooming the View

Zooming in and out the view is also important. Again, Blender offers you several ways to do what you need to do:

If your mouse has a scroll wheel, scroll it.
CTRL+ALT+LMB and scroll up and down (not left or right)
NUM+ and NUM-

Placing the 3D cursor

Click the LMB somewhere in the 3D window. The red and white circle (the 3D cursor) moves to where you clicked. Orbit the view again and notice that the 3D cursor marks a point in 3D space.

In any given rotational perspective, the set of possible 3D points where you can place the cursor is defined by the plane of your screen. If you're looking at the standard plane straight-on (meaning the standard plane is exactly parallel to your screen), you will place the cursor at the same height above or below the standard plane no matter where you click. Don't worry, you'll understand this point soon enough.

Adding and Deleting Objects

Make sure you are in Object Mode. If not, press TAB. The tab key switches between the edit and object modes. A status bar at the top-right of the window will indicate the current mode by displaying 'Ob' or 'Ed' depending on the currently toggled mode. Another way to check which view you are in is to check the bottom of the 3D view.

For laptop users: the num lock

You can temporarily activate the numpad behavior by holding the FN key (lower left corner of the keyboard) and using the keys as a numpad until you release FN. This allows convenient use of the numpad camera controls without interfering with the normal use of that set of keys. Also you may pull down the User Preferences window, at the top (menu bar window), choose the System and OpenGL button, and click on Emulate Numpad to use the normal numbers as if they were the number keys on the pad (NUM0 == 0 KEY at that point).

For simply rotating around the object, press Alt+LMB and drag.

If you envision using your laptop for this kind of work, or indeed any work involving numeric data inputting, it may be worth investing in a USB Numeric Keypad, as Blender uses the numeric keypad quite a bit. Prices range from between $15 to $20 for a basic keypad.

Window Types

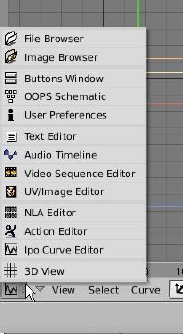

Blender has a variety of different window types and every window can be set to any type. For example, your initial screen has 3 windows, the top one with the toolbars, the 3D window, and the bottom buttons window. The various window types are as follows:

window-types

The window types that we are most interested in right now are:

File Browsers- comes up automatically on demand in most cases
User Preferences- menus and options
UV/Image Editor- for applying game textures
Video Sequence Editor- for animations
3D View- to see our work and model items

The User Preferences Window

If you place your mouse on the line between the 3D window and the User Preferences window (at the top), hold down the Left Mouse Button (LMB) and drag down, you will expose a number of setting options at the top of the screen.
top

Settings of interest -

Interface- tool tips and mouse settings
Editing- how things are linked and duplicated
Addons- how things are linked and duplicated

Save, Open, Append

Open/Append

Blender utilizes commands similar to other programs when it comes to saving and opening your work with a few exceptions. Other programs use "import" and "insert" commands to bring other files together. Blender just uses Open and Append. If you are bringing elements in from another Blender (.blend) file, you use Append. If you are bringing other types of files into Blender, you only need to use the Open command and this will insert the other file types into your Blender file. Blender accepts VRML (.wrl) and .DXF files into the program.

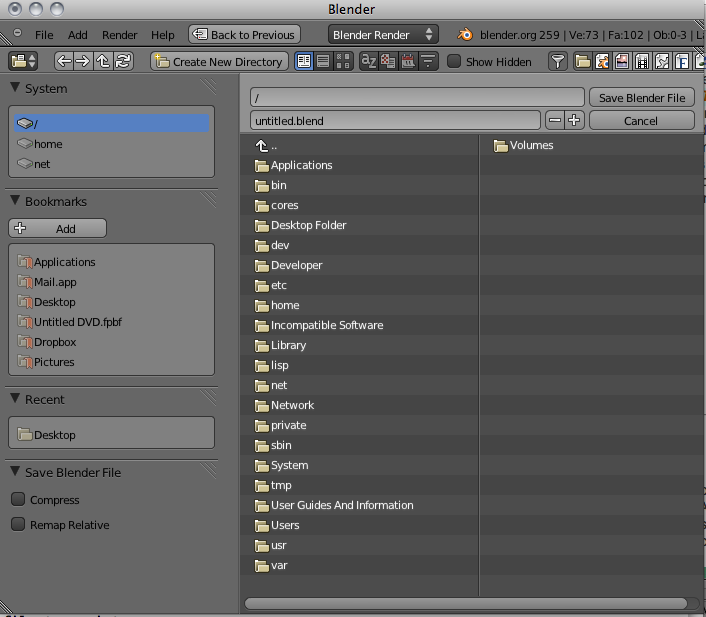

The Save Command

With the old Blender it seemed almost impossible to figure out how to save your work. The file interface resembled old MS-DOS. The new interface is much more intuitive

The Append Command

When you need to insert elements from one Blender (.blend) file into another one, you need to use the Append command from the file pull-down menu. While in Append, you need to navigate to the Blender file you wish to insert from, then select what you want to append into the open file. You can append anything from cameras, lights meshes, materials, textures, scenes and objects. For most purposes, use the Object option. By appending objects, any materials, textures and animations that are linked to that object will automatically come in with it. Right Mouse Button (RMB-⌘+click) clicking on objects will select/deselect them. Typing A will select them all. After you select all objects to append, click the Load Library button in the upper right corner of the screen.

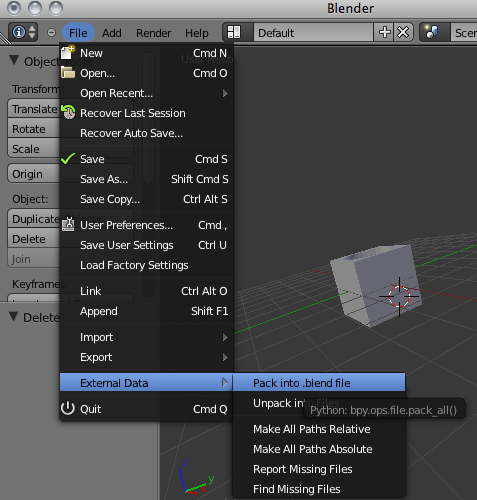

Packing Data

If you plan to open this file on other computers, you will need to select the Pack Data option in the file menu. Textures and sounds are not automatically included in your Blender file in order to keep the file size down. Every time your file opens, it looks for the textures and sounds and places them into your model. If it can't find the files, you won't have any textures and sounds. If you pack data, those files are included with the .blend file so they can be opened anywhere, however, your file size may explode. When data is packed, a small package shows up on the top of your screen letting you know that the file is packed. You can also unpack data to bring the file size back down.

Manipulators

You can use the manipulators instead of the hotkeys to manipulate your objects.

Make sure you are in object mode and that the pivot mode is set to median point or bounding box center:

To move the object, hold the LMB on one of the arrows and drag in the direction you want your object to move in.

To use keyboard shortcuts:
G for move
R for rotate
S for scale
You can constrain the movement in specific directions by pressing X,Y or Z

Global X,Y and Z are world space. Z is always up, no matter which way the object is rotated. In local space, Z is up only in terms of the object itself.

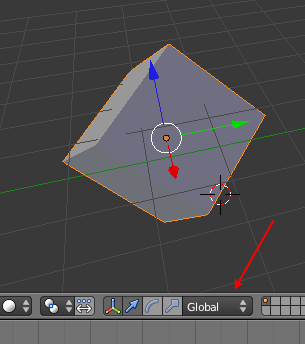

To the right of the manipulator tool buttons is a drop-down list where you can change whether the manipulator arrows work on global or local coordinates. Changing between the two modes will change the direction of the arrows.

Press N to reveal the Properties Panel:

You can specify your transformations through numbers.

OPT+G resets the location to the global center
OPT+R resets the rotation so the object stands pright in global coordinates
OPT+S resets the scale to the object's original size

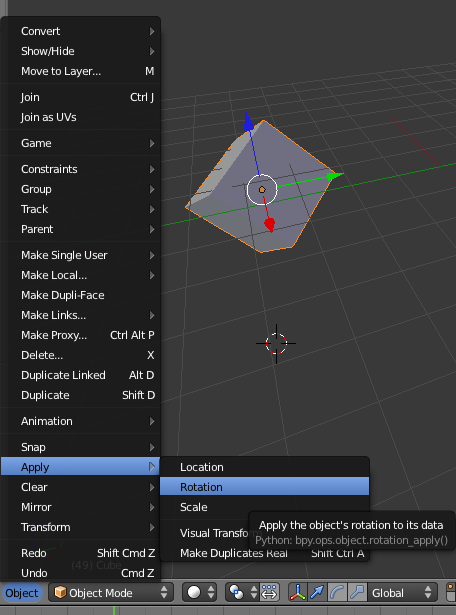

If you want to change an object's rested position, make the changes, then lock in its new positioning by selecting Object>Apply>Location/Rotation/Scale from the bottom menu.
